2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage83.
4.Locatethecoolingshroudandliftitoutoftheserver.

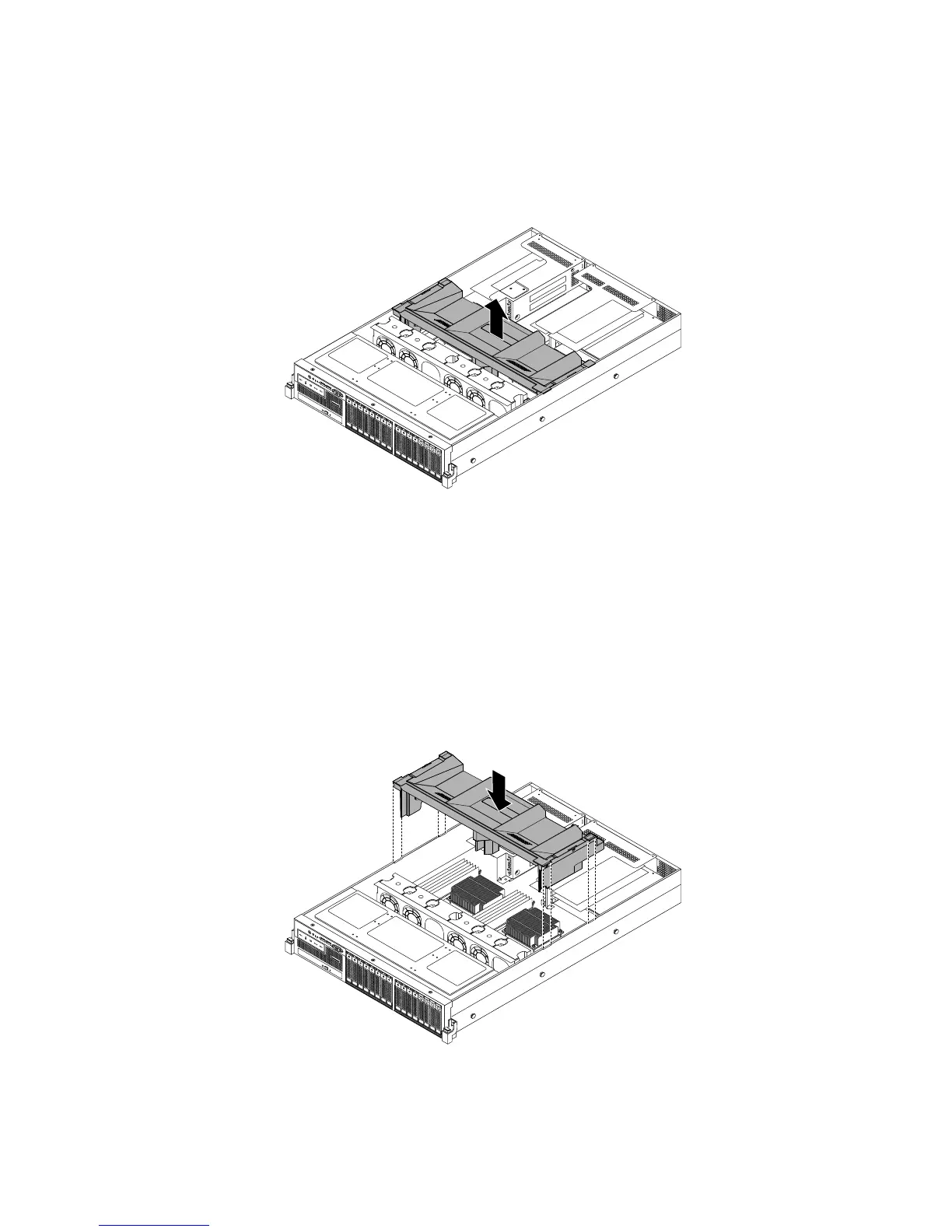

Figure52.Removingthecoolingshroud
5.Toreinstallthecoolingshroud,ensurethatallcomponentshavebeenreassembledcorrectlyandthat
notoolsorloosescrewsareleftinsideyourserver;andalsoensurethatallcablesinsidetheserver
havebeenproperlyroutedsothattheywillnotinterferewithinstallingthecoolingshroud.Notethe
orientationofthecoolingshroudandthenplaceitabovetheserversothatthetabsonbothsidesofthe
coolingshroudarealignedwiththecorrespondingholesorgapsinbothsidesofthechassis.Then,
lowerthecoolingshroudintothechassisuntilitsnapsintoposition.
Note:Ifnecessary,gentlypressthecoolingshroudonbothsidessothatthetabsonthecoolingshroud
completelyengagewithbothsidesofthechassis.
Figure53.Installingthecoolingshroud
6.Goto“Completingthepartsreplacement”onpage174.
