Note:Dependingonthespecictype,theEthernetcardanditsbracketmightlookdifferentfromthe
followingillustrations.
a.CarefullyremovethescrewsthatsecuretheEthernetcardandthenremovethefull-heightbracket
fromtheEthernetcard.

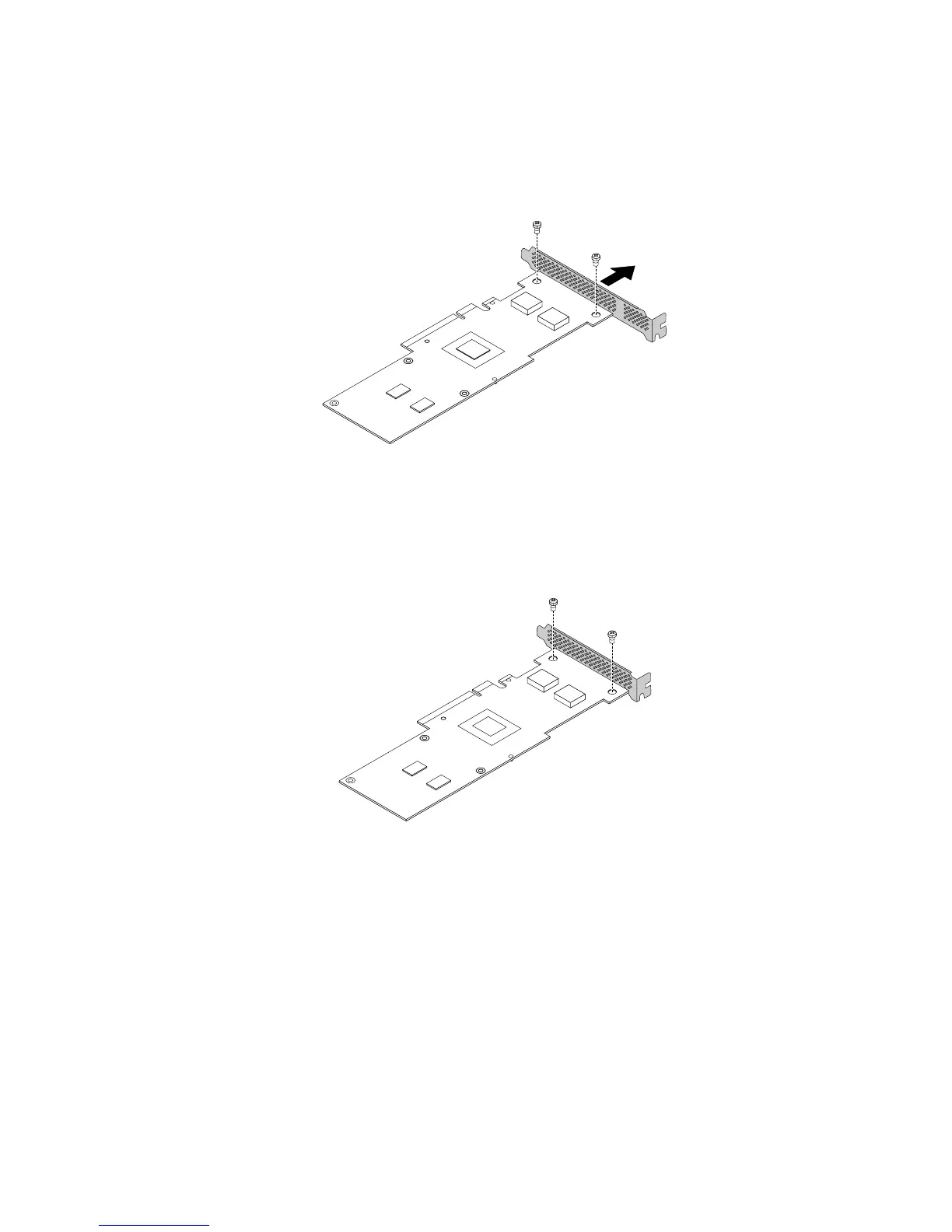

Figure74.Removingthefull-heightbracketfromtheEthernetcard
b.Notetheorientationofthelow-prolebracketandpositionitontheEthernetcardsothatthescrew
holesinthelow-prolebracketarealignedwiththecorrespondingholesintheEthernetcard.Then,
carefullyinstallthescrewstosecurelyattachthelow-prolebrackettotheEthernetcard.
Figure75.Installingthelow-prolebrackettotheEthernetcard
116ThinkServerRD430UserGuide
