ThistopicprovidesinstructionsonhowtoremoveanEthernetcard.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•Dependingonthespecictype,theEthernetcardmightlookdifferentfromtheillustrationinthistopic.
•UseanydocumentationthatcomeswiththeEthernetcardandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
ToremoveanEthernetcard,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage83.
4.Removetherisercardassembly2andlayitupsidedownonaat,clean,andstatic-protectivesurface.
See“Replacingtherisercardassembly2”onpage161.
Note:UsuallyEthernetcard(s)areinstalledontherisercardassembly2.AnEthernetcardalsomight
beinstalledinanyPCIExpresscardslotthatsupportsit.See“Rearviewoftheserver”onpage26to
identifythePCIExpresscardslotsofyourserver.
5.LocatetheEthernetcardyouwanttoremove.Then,grasptheEthernetcardbyitsedgesandcarefully
pullitoutofthePCIExpresscardslotontherisercardassembly.
Note:TheEthernetcardmightttightlyintothePCIExpresscardslot.Ifnecessary,alternatemoving
eachsideoftheEthernetcardasmallandequalamountuntilitiscompletelyremovedfromtheslot.

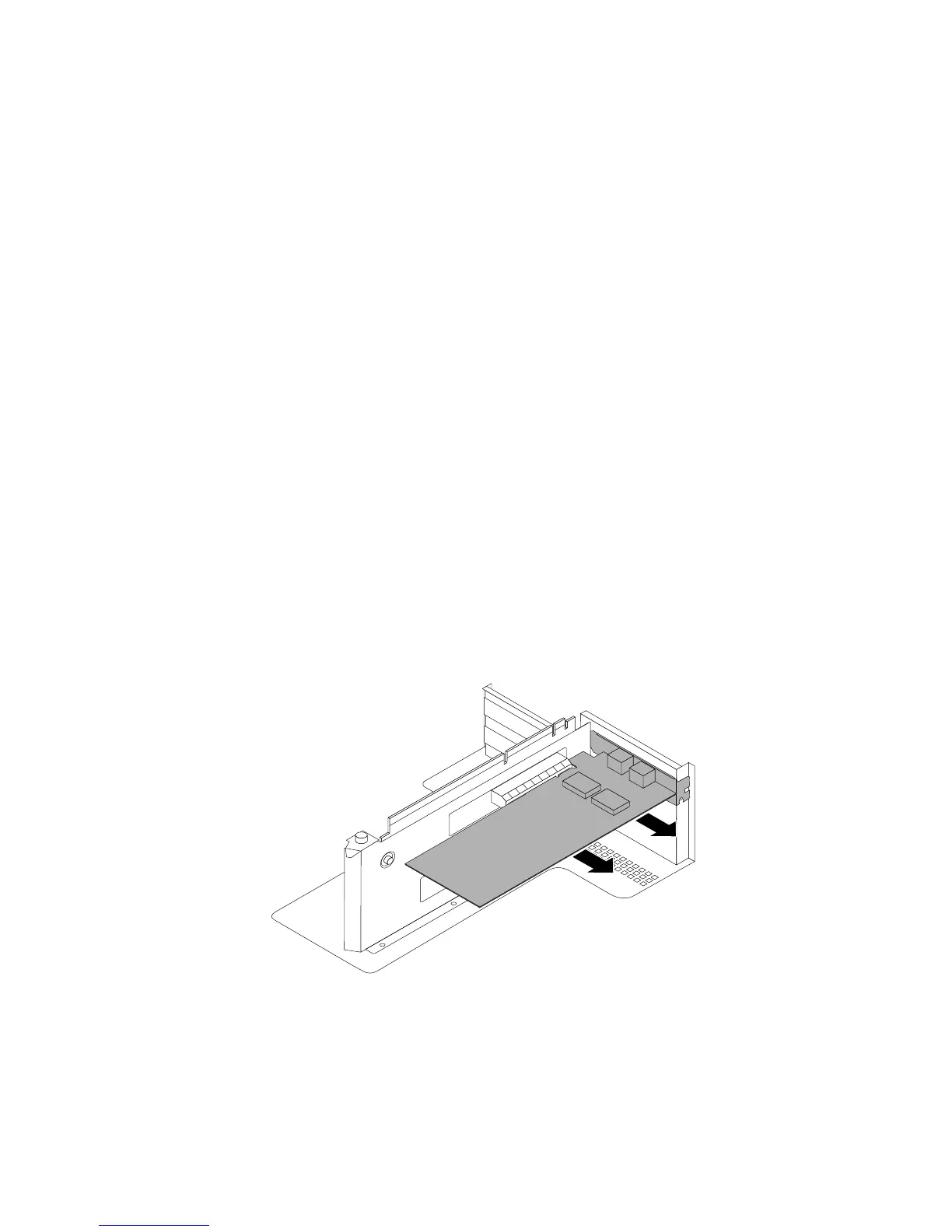

Figure77.RemovinganEthernetcard
6.InstallanewEthernetcardtoreplacetheoldoneorinstallaPCIcardslotbrackettocovertheplace.
See“InstallinganEthernetcard”onpage114
.
7.Reinstalltherisercardassembly2.See“Replacingtherisercardassembly2”onpage161.
