7.Ensurethatthesmallhandleandthemicroprocessorretainerareinthefullyopenposition.Touchonly
theedgesofthemicroprocessorandcarefullyliftitstraightupandoutofthemicroprocessorsocket.
Placetheoldmicroprocessoronastatic-protectivesurface.
Notes:
•Donottouchthegoldcontactsonthebottomofthemicroprocessor.
•Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmustbe
keptascleanaspossible.

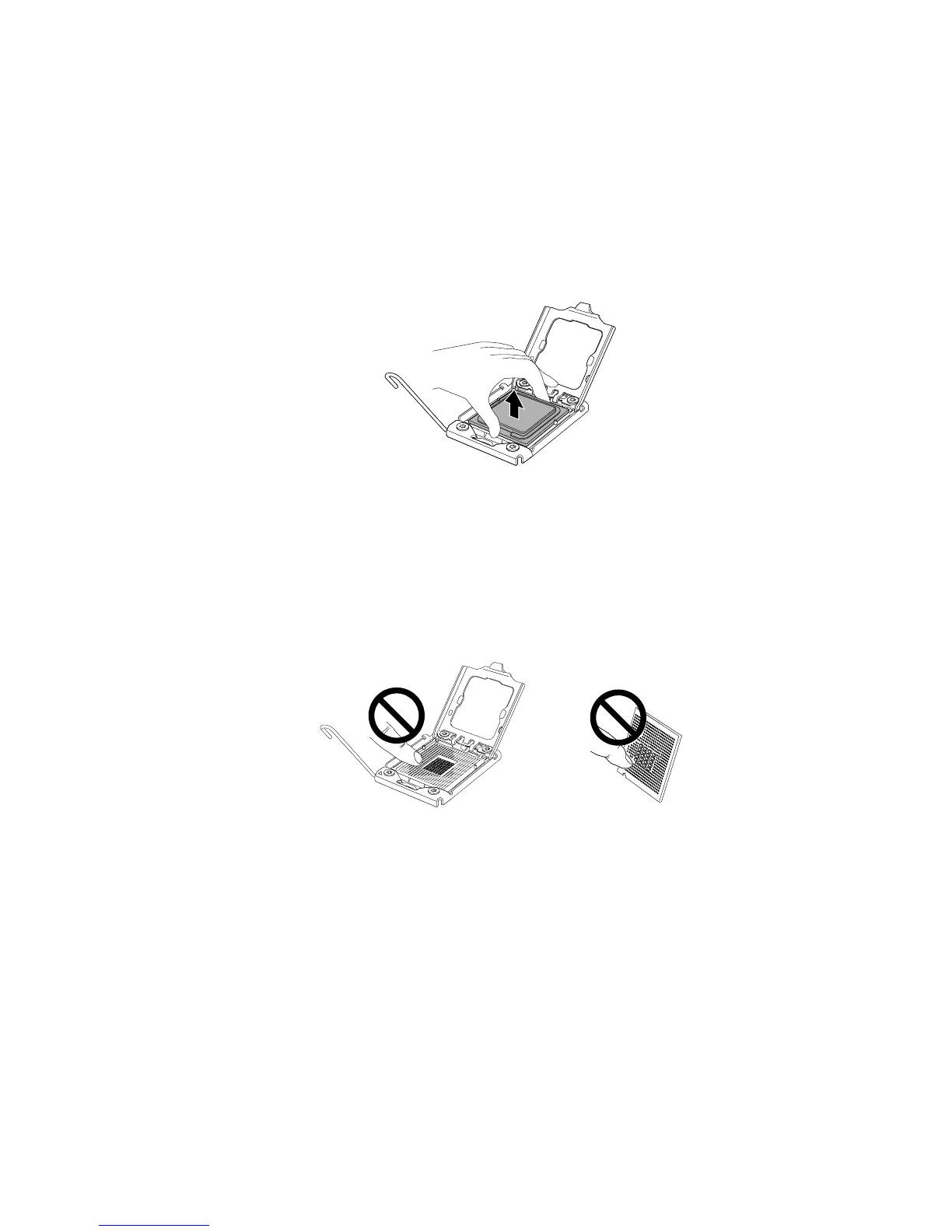

Figure95.Removingthemicroprocessor
8.Touchthestatic-protectivepackagethatcontainsthenewmicroprocessortoanyunpaintedsurfaceon
theoutsideoftheserver.Then,removethenewmicroprocessorfromthepackage.
9.Removetheprotectivecoverthatprotectsthegoldcontactsonthebottomofthenewmicroprocessor.
Donottouchthepinsonthemicroprocessorsocketandthegoldcontactsonthebottomofthenew
microprocessor.
Figure96.Donottouchthepins
Chapter6.Installing,removing,orreplacinghardware141
