5.Positionthe2.5-inchsolid-statedriveintothe3.5-inchto2.5-inchdriveadapterasshowninthe
followingillustration.

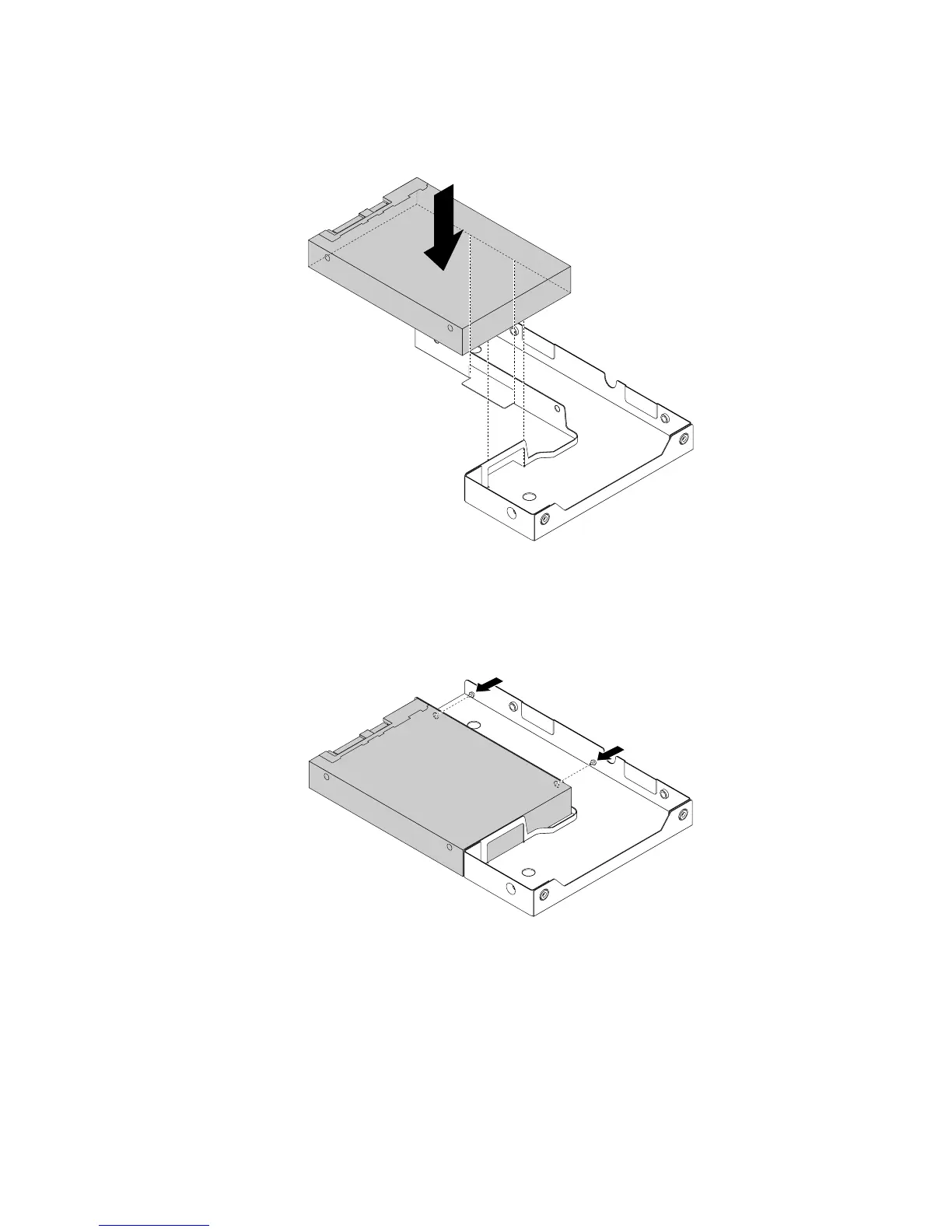

Figure106.Positioningthe2.5-inchsolid-statedriveintothedriveadapter
6.Alignthetwoscrewholesinthesolid-statedrivewiththecorrespondingholesinthedriveadapter.
Then,installthetwoscrewstosecurethesolid-statedrivetothedriveadapter.
Figure107.Installingthescrewstosecurethesolid-statedrivetothedriveadapter
7.Positionthedriveadapterwiththesolid-statedriveintothe3.5-inchdrivebracket.
Chapter6.Replacinghardware131
