8.Alignthescrewholesinthedriveadapterandthesolid-statedrivewiththecorrespondingholesinthe
drivebracket.Then,installthefivescrewstosecurethedriveadapterandthesolid-statedriveto
thebracket.

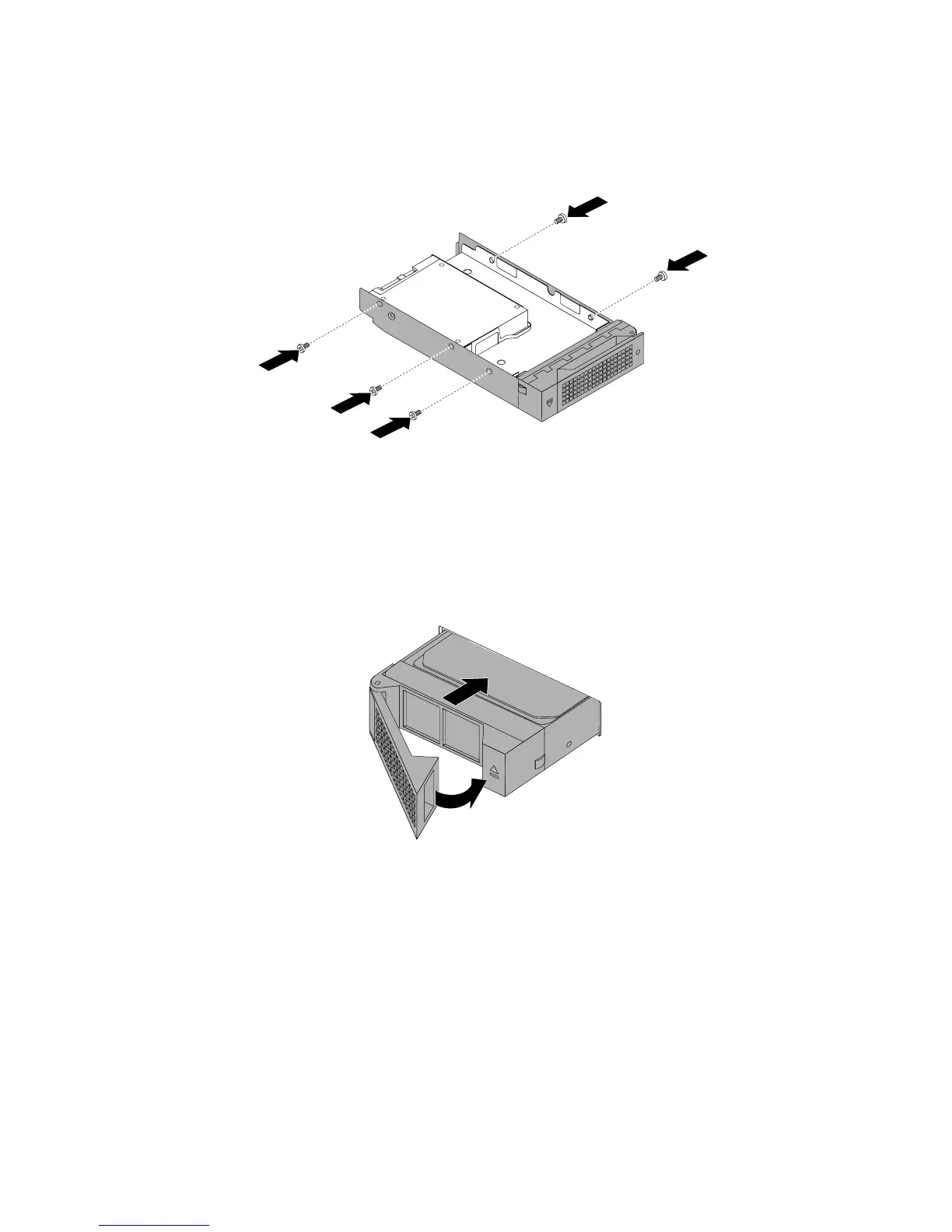

Figure108.Installingthescrewstosecurethedriveadapterandthesolid-statedrivetothebracket
9.Slidethebracketwiththesolid-statedriveintothedrivebayfromthefrontuntilitsnapsintoposition
andthencompletelyclosethehandle.
Figure109.Installingthebracketwiththesolid-statedrive
10.CheckthedrivestatusLEDstoensurethatthesolid-statedriveisoperatingcorrectly.Youmighthaveto
restarttheserverforthenewlyinstalledsolid-statedrivetoberecognized.See“Hot-swap-drivestatus
LEDs”onpage43.Ifthesolid-statedriveisfaulty,reinstallorreplaceituntilitisoperatingcorrectly.
11.Savetheremoveddummyhard-disk-drivetrayincasethatyoulaterremovethesolid-statedrive
andneedadummytraytocoverthedrivebay.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•ToconfigureRAID,goto“ConfiguringRAID”onpage54
.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage152.
