Notes:
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
•Useanydocumentationthatcomeswiththenewopticaldriveandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
Toinstallorreplacetheopticaldrive,dothefollowing:
1.Removeallexternalmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,
disconnectallpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedto
theserver.
2.Prepareyourserver.See“Removingorextendingtheserverfromtherackcabinet”onpage61.
3.Removetheservercover.See“Removingtheservercover”onpage61.
4.Locatetheopticaldriveordummyopticaldrive.See“Servercomponents”onpage25.
5.Ifyouarereplacingtheopticaldrive,disconnectthesignalcableandthepowercablefromtherearof
theopticaldrive.Pressthereleasebuttoninwardandthenslidetheopticaldriveoutfromthefrontof
theserver.

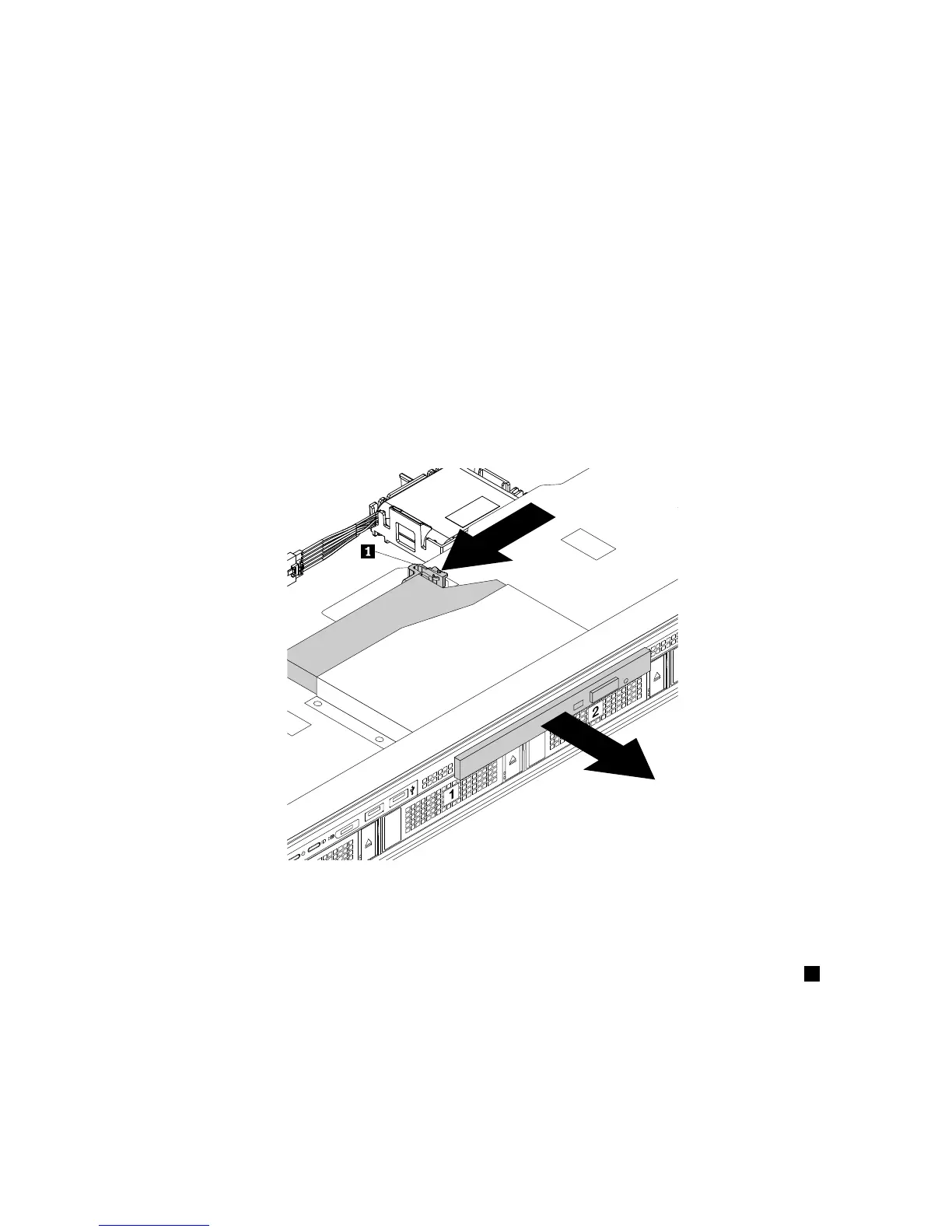

Figure115.Removingtheopticaldrive
6.Touchthestatic-protectivepackagethatcontainsthenewopticaldrivetoanyunpaintedsurfaceonthe
outsideoftheserver.Then,takethenewopticaldriveoutofthepackage.
7.Slidethenewopticaldriveintothedrivebayfromthefrontuntilitissecuredbythereleasebutton1.
136ThinkServerRD550UserGuideandHardwareMaintenanceManual
