7.Locatethememorymodulethatyouwanttoremoveandopentheretainingclipsonbothendsofthe
memoryslot.Then,graspthememorymodulebyitsedgesandcarefullypullitstraightuptoremoveit
fromthememoryslot.

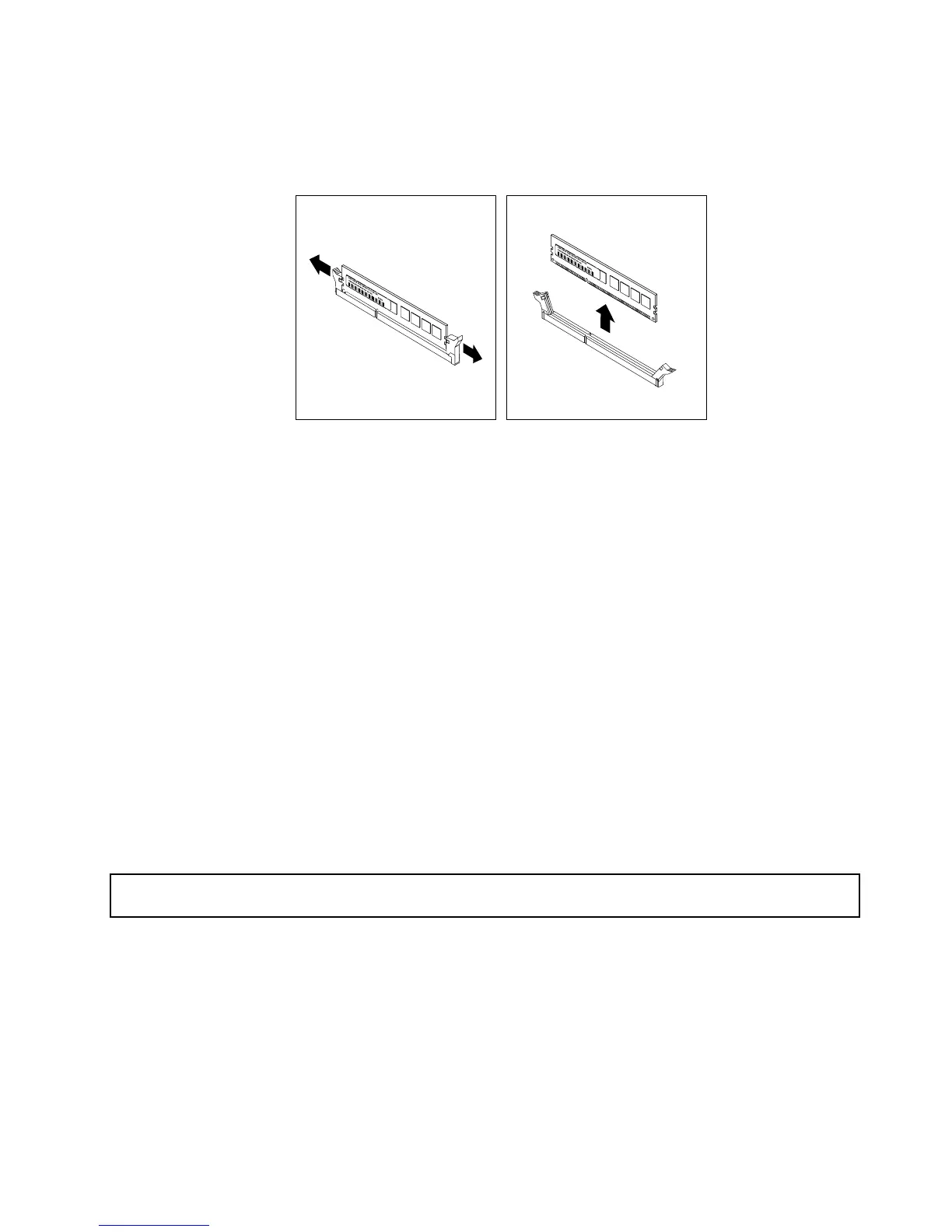

Figure39.Removingamemorymodule
8.Reinstallanypartsorreconnectanycablesthatyouhaveremoved.
9.Ifyouareinstructedtoreturntheoldmemorymodule,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage152.
InstallingorremovingtheThinkServerSystemManagerPremiummodule
TheThinkServerSystemManagerPremium(TSMPremium)offersconvenient,remoteKVMaccessand
controlthroughtheLANorInternet.YoucanusetheTSMPremiumtogainlocation-independentremote
accesstorespondtocriticalincidentsandtoundertakenecessarymaintenance.Therefore,workingasan
integratedsolutioninyourserver,theTSMPremiumprovidesanincreasedlevelofmanageabilityoverthe
basicservermanagementavailable.YoucanpurchaseaTSMPremiummodulefromLenovo.
ForalistofThinkServeroptions,goto:
http://lenovoquickpick.com/usa/home/thinkserver/rack-and-tower-server
InstallingtheTSMPremiummodule
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage59.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•UseanydocumentationthatcomeswiththeTSMPremiummoduleandfollowthoseinstructionsin
additiontotheinstructionsinthistopic.
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
ToinstalltheTSMPremiummodule,dothefollowing:
Chapter6.Replacinghardware71
