1.Removeallexternalmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,
disconnectallpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedto
theserver.
2.Prepareyourserver.See“Removingorextendingtheserverfromtherackcabinet”onpage61.
3.Removetheservercover.See“Removingtheservercover”onpage61.
4.Removetherisercardassembly2.See“Replacingtherisercardassembly”onpage143.
5.Touchthestatic-protectivepackagethatcontainstheTSMPremiummoduletoanyunpaintedsurface
ontheoutsideoftheserver.Then,taketheTSMPremiummoduleoutofthepackage.
6.LocatetheTSMPremiummoduleconnectoronthesystemboardandtheninserttheTSMPremium
moduleintotheTSMPremiummoduleconnector.
Note:EnsurethattheTSMPremiummoduleissecurelyseatedonthesystemboard.

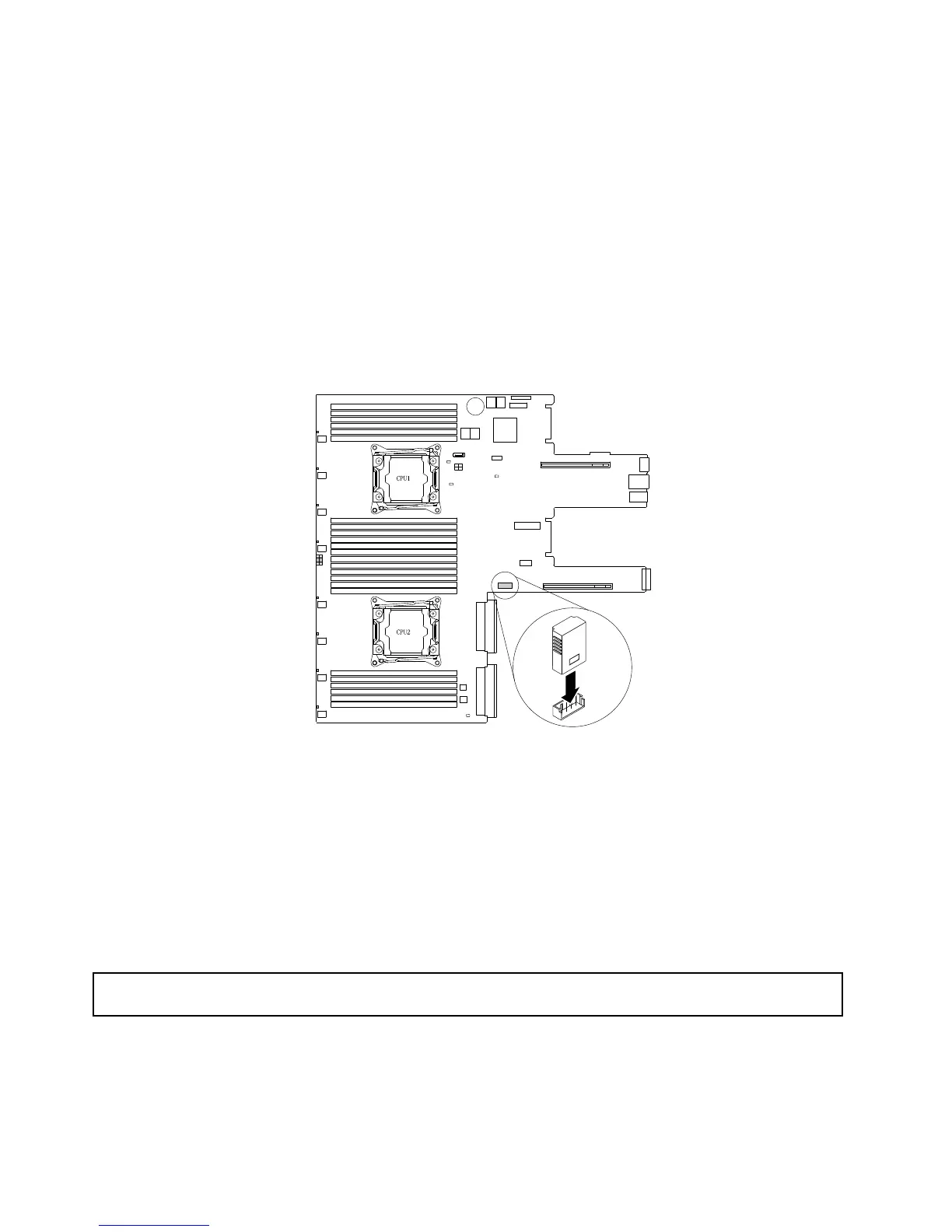

Figure40.InstallingtheTSMPremiummodule
7.Reinstalltherisercardassembly2.See“Replacingtherisercardassembly”onpage143.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage152.Forinformation
aboutserverremotemanagement,downloadandreadtheThinkServerSystemManagerUserGuideat:
http://www.lenovo.com/UserManuals
RemovingtheTSMPremiummodule
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage59.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
