2.Pressthecircledarea1toopenthehandleofthedummyhard-disk-drivetray.
MEM 1
PSU 1 2
1 2 3 4 5 6 7 8
MEM 2
1 2 3 4 5 6 7 8 9 10
CPU 1 2
1 2 3 4 5 6 7 8 9 10
ID
PSU
Mem
CPU

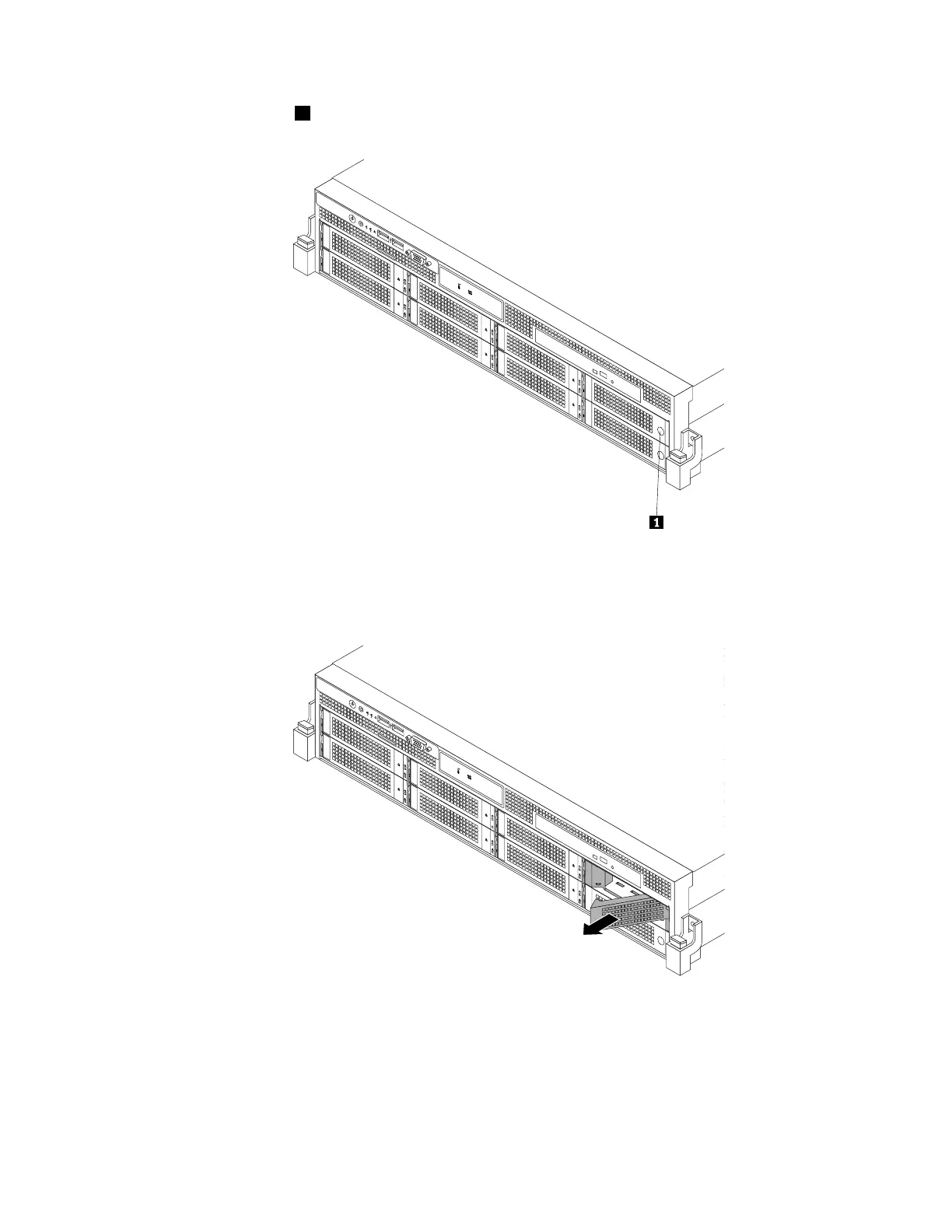

Figure86.Openingthehandleofthedummyhard-disk-drivetray
3.Pullthehandleandcarefullyslidethedummyhard-disk-drivetrayoutofthefrontofthechassis.
MEM 1
PSU 1 2
1 2 3 4 5 6 7 8
MEM 2
1 2 3 4 5 6 7 8 9 10
CPU 1 2
1 2 3 4 5 6 7 8 9 10
ID
ID
PSU
Mem
CPU
Figure87.Removingthedummyhard-disk-drivetray
4.Touchthestatic-protectivepackagethatcontainsthe2.5-inchsolid-statedrivetoanyunpaintedsurface
ontheoutsideoftheserver.Then,takethesolid-statedriveoutofthepackage.
Note:Donottouchthecircuitboardonthesolid-statedrive.
