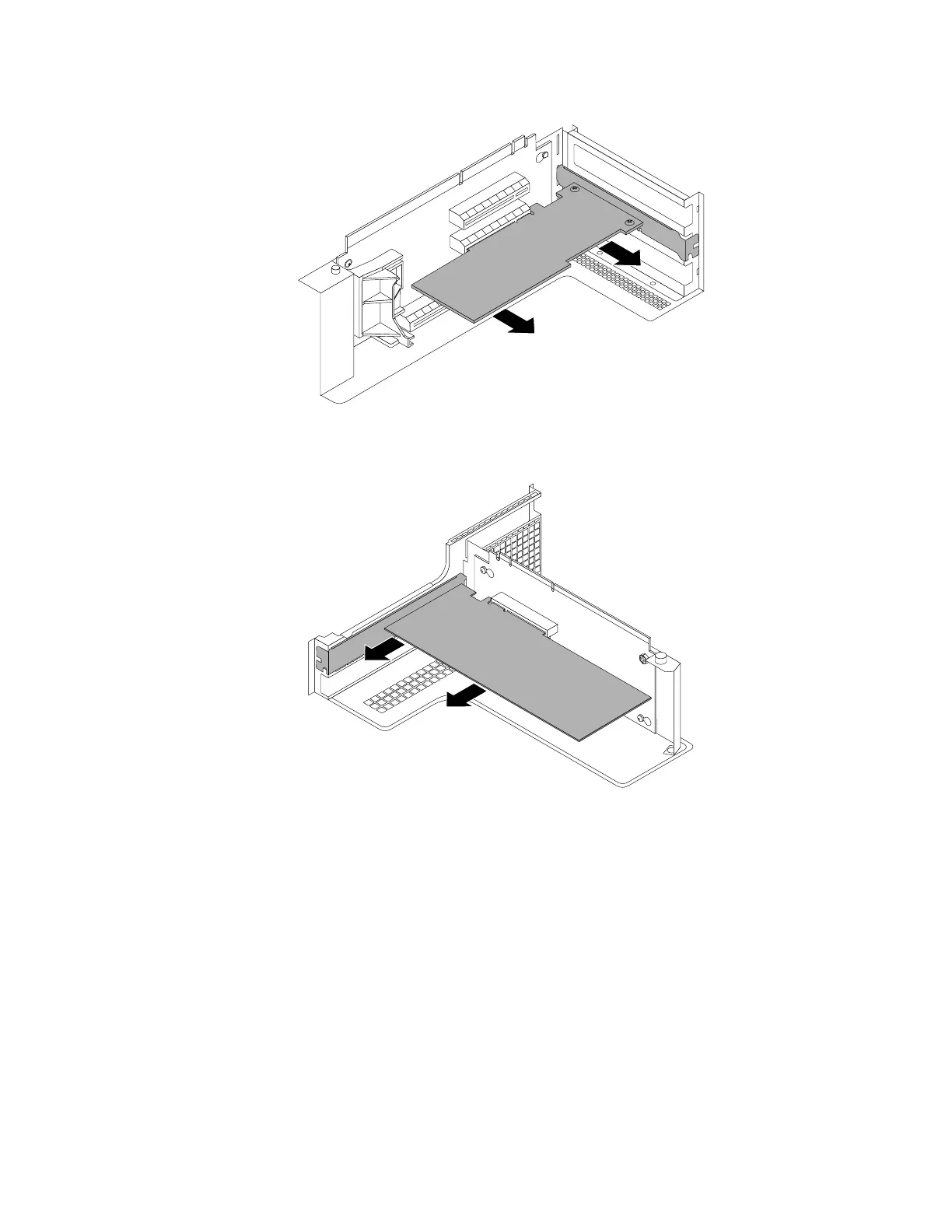

Figure132.RemovingthePCIExpresssolid-statedrivefromtherisercardassembly1
Figure133.RemovingthePCIExpresssolid-statedrivefromtherisercardassembly2
8.Touchthestatic-protectivepackagethatcontainsthenewPCIExpresssolid-statedrivetoany
unpaintedsurfaceontheoutsideoftheserver.Then,takethenewPCIExpresssolid-statedriveout
ofthepackage.
Note:CarefullyhandlethePCIExpresssolid-statedrivebyitsedges.
9.Dooneofthefollowing:
•ToinstallthenewPCIExpresssolid-statedriveontherisercardassembly1,notethedottedlines
inthefollowingillustrationtohelpyoucorrectlypositionthePCIExpresssolid-statedrivenearthe
PCIExpresscardslotontherisercardassembly1.Then,carefullypressthenewPCIExpress
solid-statedrivestraightintotheslotinthemiddleuntilitissecurelyseatedanditsbracketalsois
securedbytherisercardassembly1.
Chapter6.Installing,removing,orreplacinghardware163
