2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.
3.Removetheservercover.See“Removingtheservercover”onpage55.
4.Locatethefanductintheserver.Disconnectthe4-pinpowercable1fromthesystemboardandthen
releasethepowercablefromthetabsthatattachthepowercabletothefanduct.Liftthefanduct
outoftheserver.
1

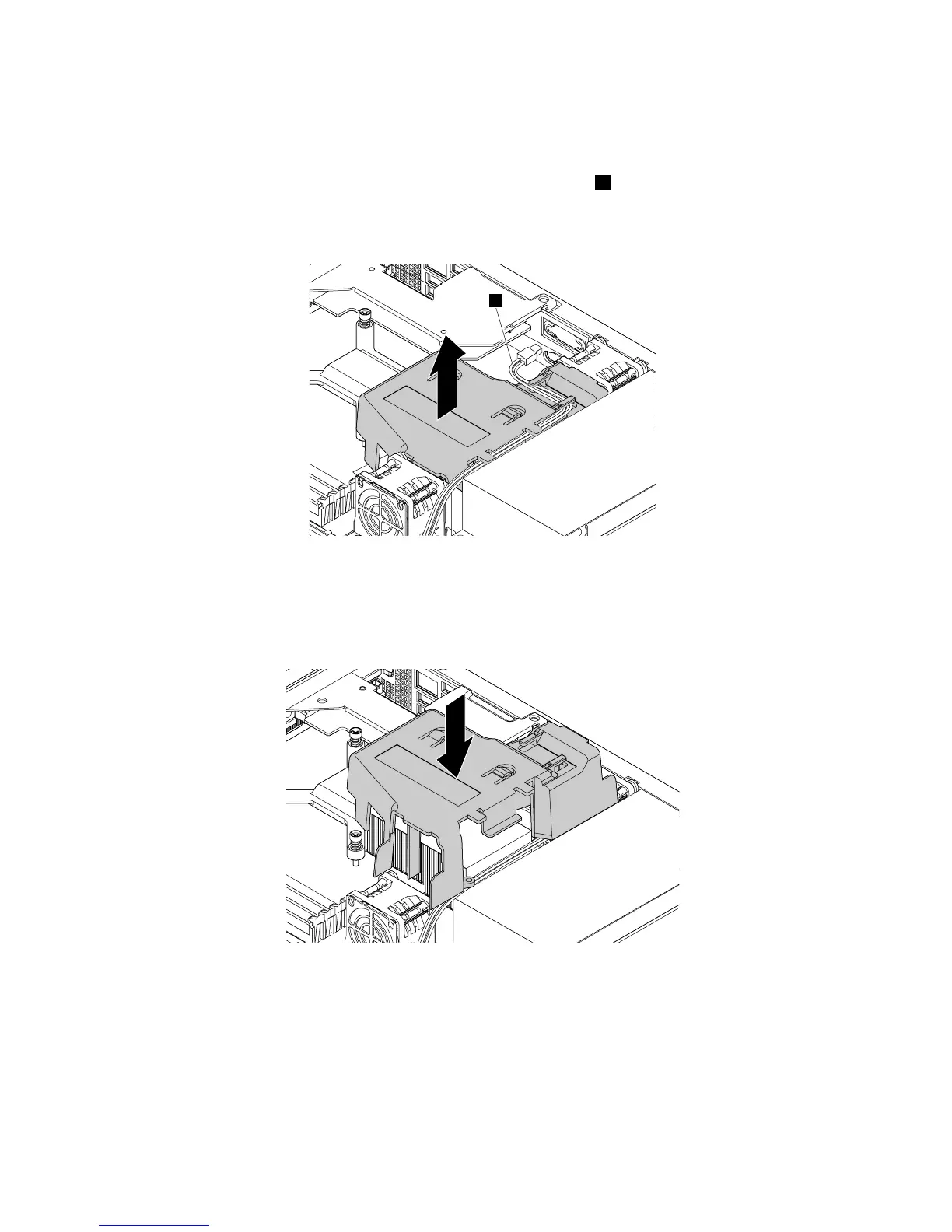

Figure27.Removingthefanduct
5.Toreinstallthefanduct,notetheorientationofthefanductandthenplaceitabovetheheatsink.Then,
lowerthefanductintothechassisuntilitissecuredintoplace.
Figure28.Installingthefanduct
6.Routethe4-pinpowercableunderthetabsonthefanductandthenconnectthe4-pinpowercableto
thesystemboard.See“Systemboardcomponents”onpage32.
7.Goto“Completingthepartsreplacement”onpage106.
