ToinstalltheRAIDcard,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.
3.Removetheservercover.See“Removingtheservercover”onpage55.
4.Locatetherisercardassemblyintheserver.See“Servercomponents”onpage17.
5.RemovethescrewthatsecuresthePCI-Express-card-slotbracketandthenremovethebracketfromthe
chassis.StoreitincaseyoulaterremovethePCIExpresscardandneedthebrackettocovertheplace.

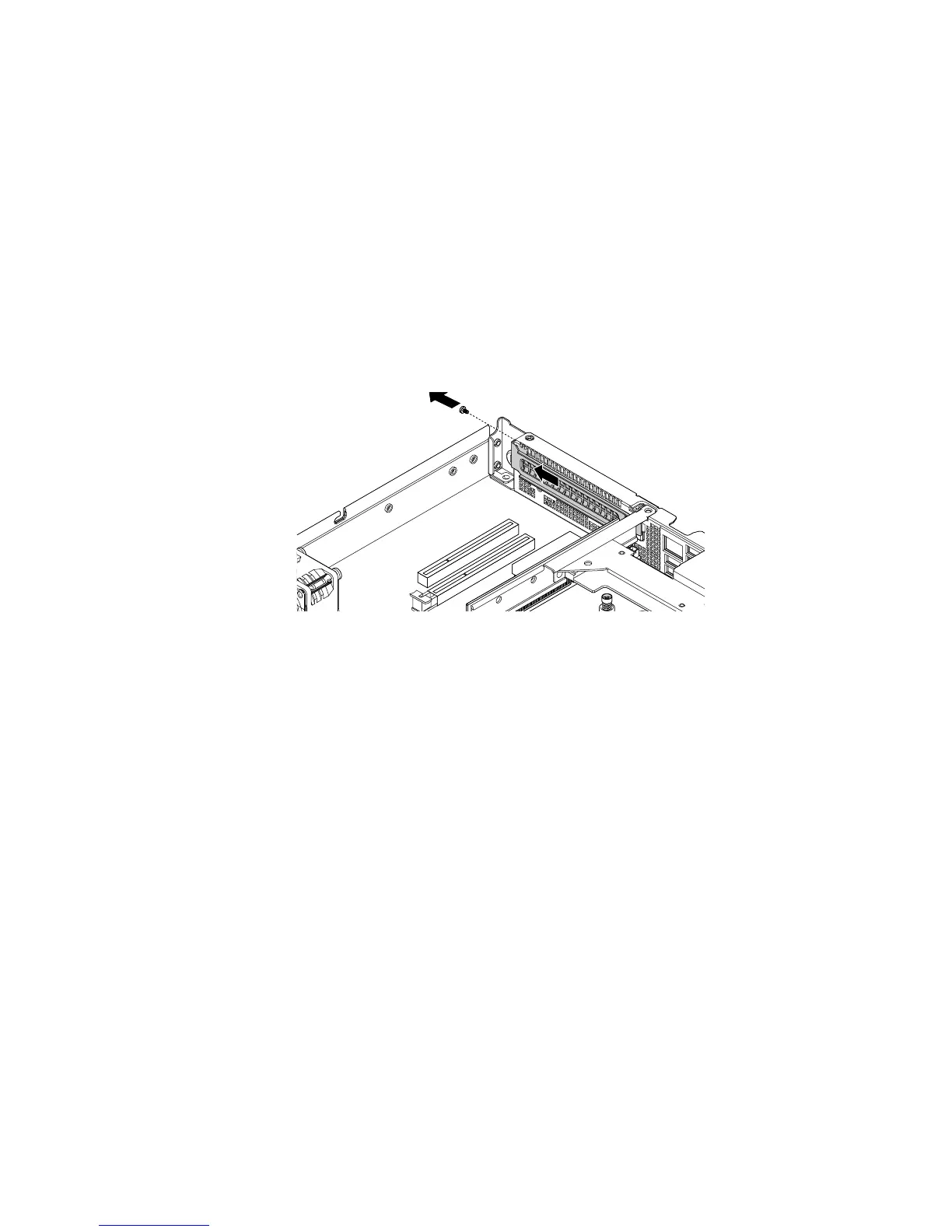

Figure33.RemovingaPCI-Express-card-slotbracket
6.Touchthestatic-protectivepackagethatcontainsthenewRAIDcardtoanyunpaintedsurfaceonthe
outsideoftheserver.Then,takethenewRAIDcardoutofthepackage.
Note:CarefullyhandletheRAIDcardbyitsedges.
7.Connectthemini-SAStoSAScombocabletotheRAIDcard.See“Connectingthecables”onpage22.
Chapter6.Installing,removing,orreplacinghardware63
