8.CorrectlypositionthenewRAIDcardnearthePCIExpresscardslotontherisercardassembly.Then,
carefullypressthenewRAIDcardintotheslotuntilitissecurelyseatedanditsbracketalsoissecured
attherearoftheserver.

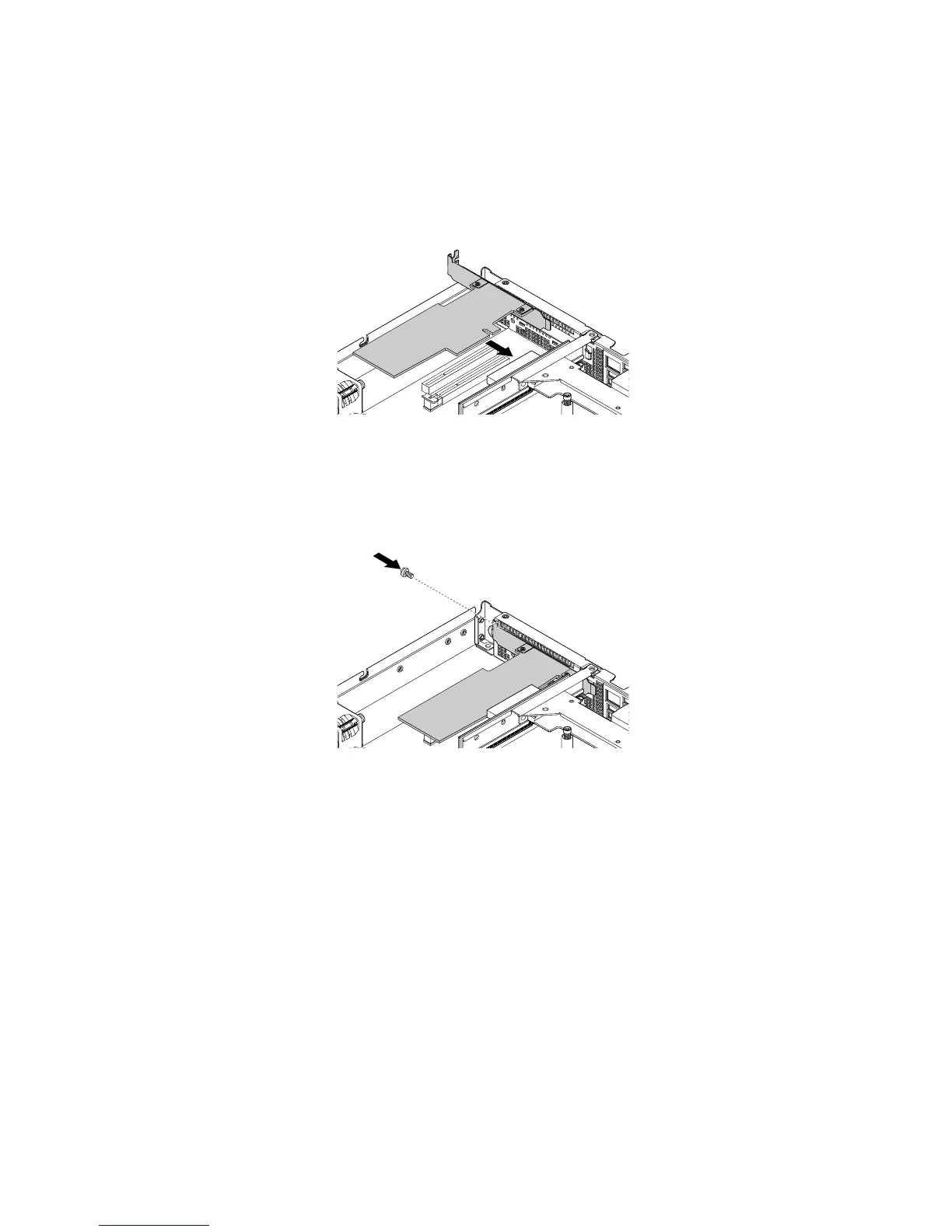

Figure34.InstallingtheRAIDcard
9.InstallthescrewtosecuretheRAIDcardtothechassis.
Figure35.InstallingthescrewtosecuretheRAIDcard
10.Connectcablesdependingonyourspecificserverconfiguration.See“Connectingthecables”on
page22.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage106
.Then,configure
RAIDforyourserver.See“ConfiguringRAID”onpage47.
•AfteryouinstallaLenovoRAIDcard,dothefollowing:
1.CheckthefirmwareversionofthenewRAIDcardfirmwarebypressingCtrl+Hwhenstartingthe
SetupUtilityprogram.
2.Gotohttp://www.lenovo.com/driversandfollowtheinstructionsontheWebpagetoverifyifthereis
anupdatedfirmwareversionfortheRAIDcard.Ifavailable,downloadandinstallthelatestfirmware
versiontoyourserver.
64ThinkServerRS140UserGuideandHardwareMaintenanceManual
