7.PivotthePCIcardlatchtotheclosedpositiontosecurethePCIcard.

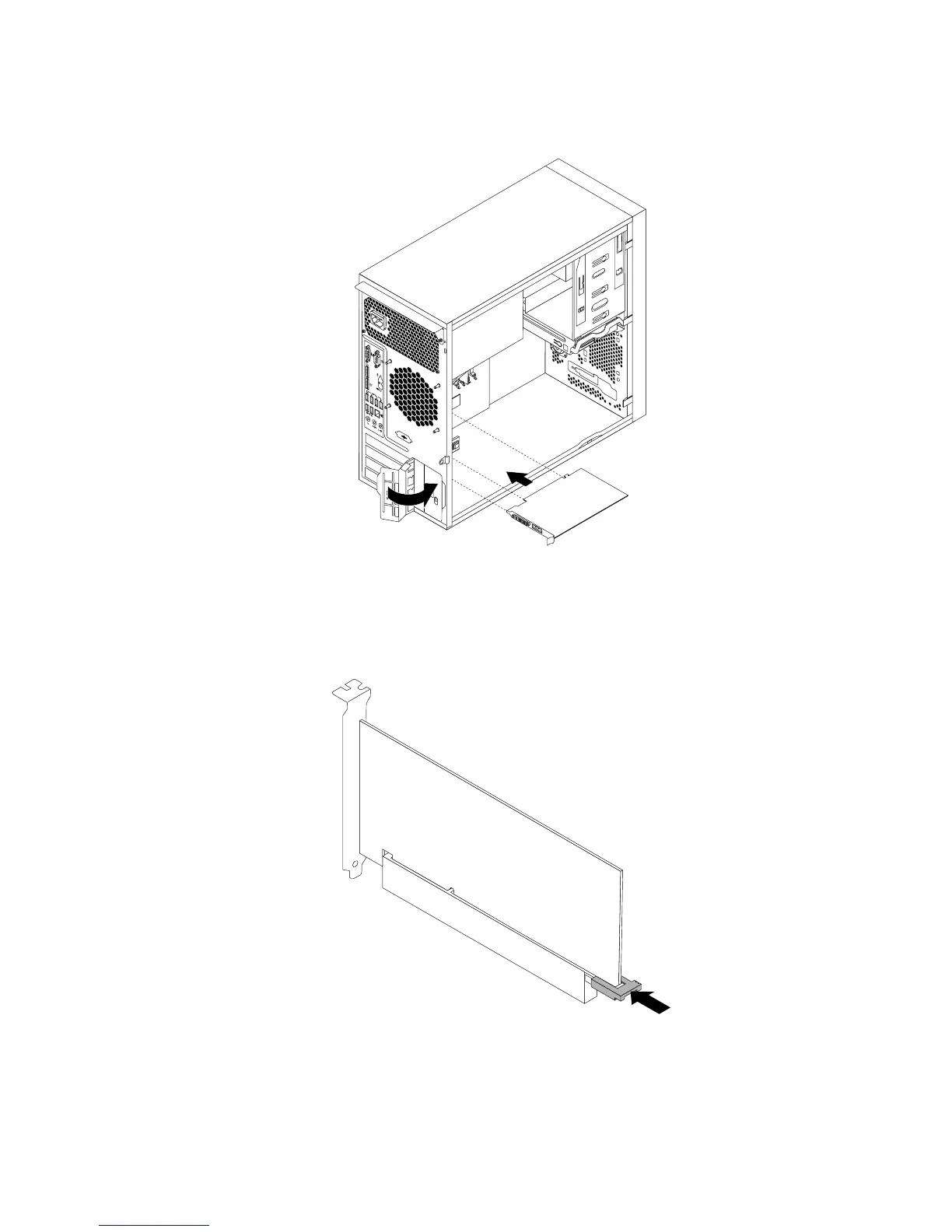

Figure41.InstallingaPCIcard
Note:IfyouareinstallingaPCIcardintoaslotwiththeretainingclip,closethecardretainingclip
asshown.
Figure42.ClosingthePCIcardretainingclip
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
Chapter6.Installing,removing,orreplacinghardware65
