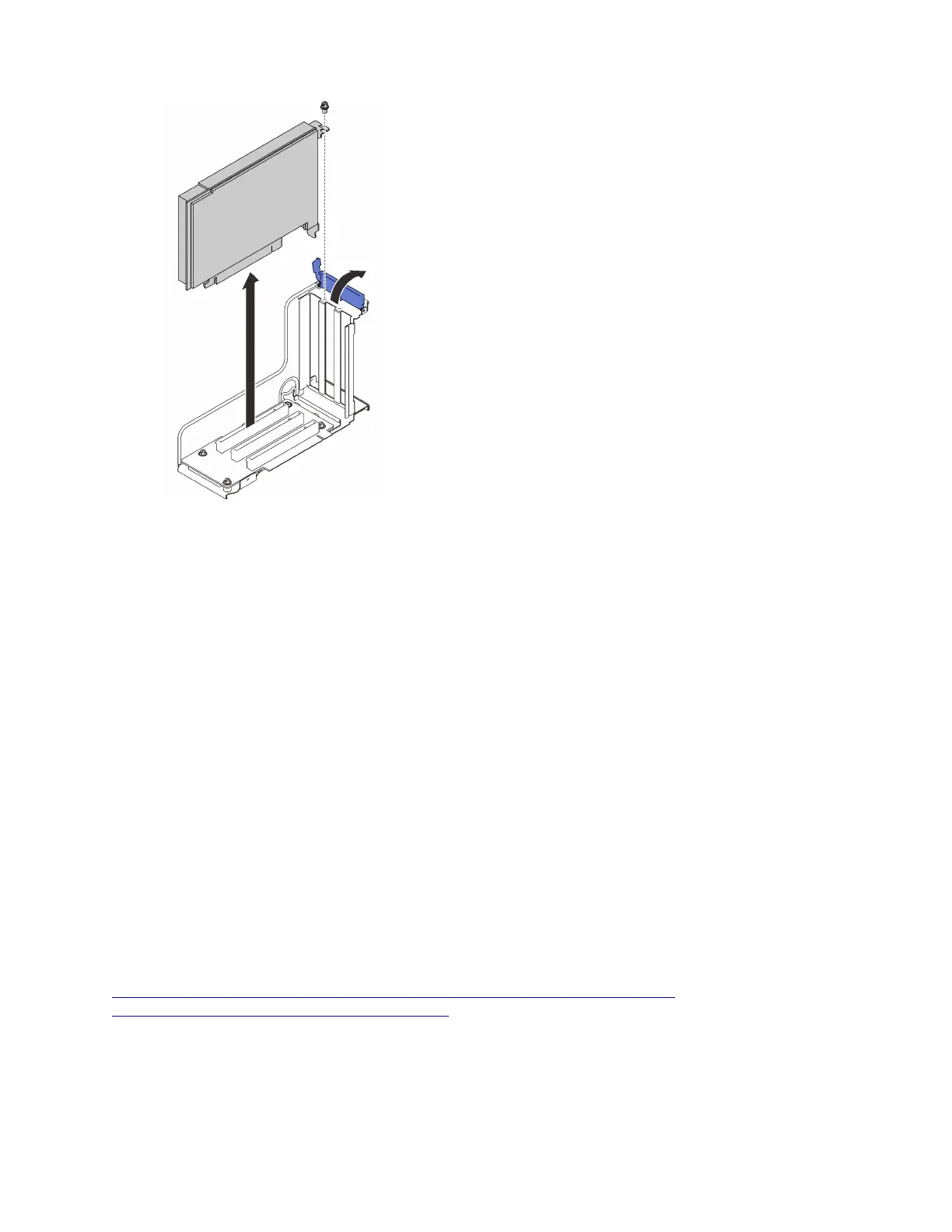

Figure 76. Removing an adapter from the PCIe riser card assembly
Step 3. Remove the screw that secures the adapter to the riser assembly.
Step 4. Remove the adapter from the PCIe riser card assembly.
After this task is completed
1. Install a replacement unit or a filler (see “Install an adapter” on page 162).
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Install an adapter
Follow the instructions in this section to install an adapter.
About this task
Attention:
• Go over “Installation Guidelines” on page 107 to ensure that you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Install an adapter on the system board
Watch the procedure. A video of this procedure is available from the following links:
•
https://www.youtube.com/playlist?list=PLYV5R7hVcs-C6QgmsUMRG6ul0bHzrGmsG
• https://list.youku.com/albumlist/show/id_54461099
Procedure
Step 1. Open the retention latch.
Step 2. If a filler has been installed in the PCIe slot, remove the screw that secures it, and remove the filler.
Step 3. Align the adapter with the connector on the system board, and push it in.
