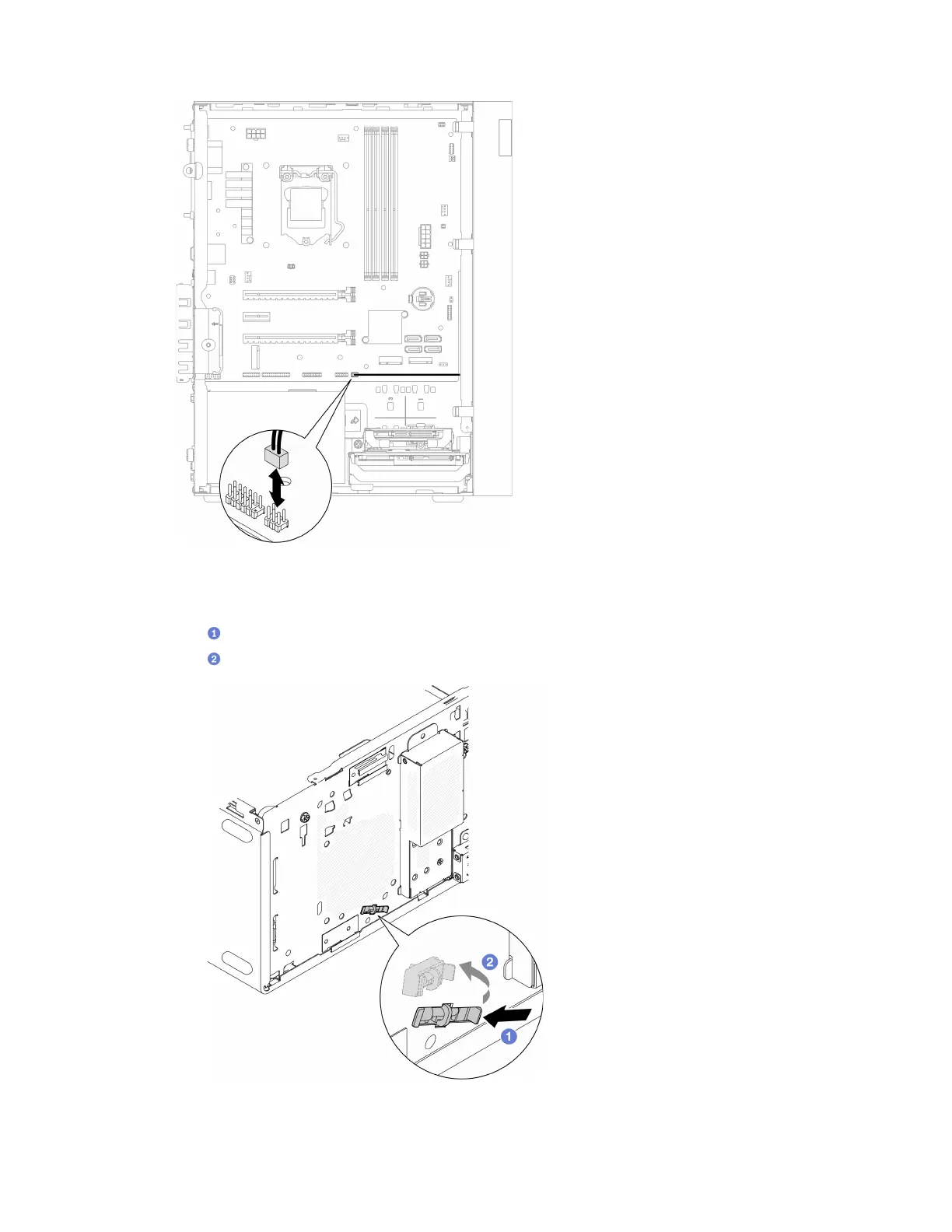

Figure 123. Disconnecting the thermal sensor cable
Step 3. Remove the thermal sensor.
a.
Press the release tab on the thermal sensor to release it from the chassis.
b.
Remove the thermal sensor from the chassis.
Figure 124. Removing the thermal sensor
Chapter 3. Hardware replacement procedures 155
