Cable routing for the front fan and rear fan
Read this section to learn about cable routing for the front fan and rear fan.

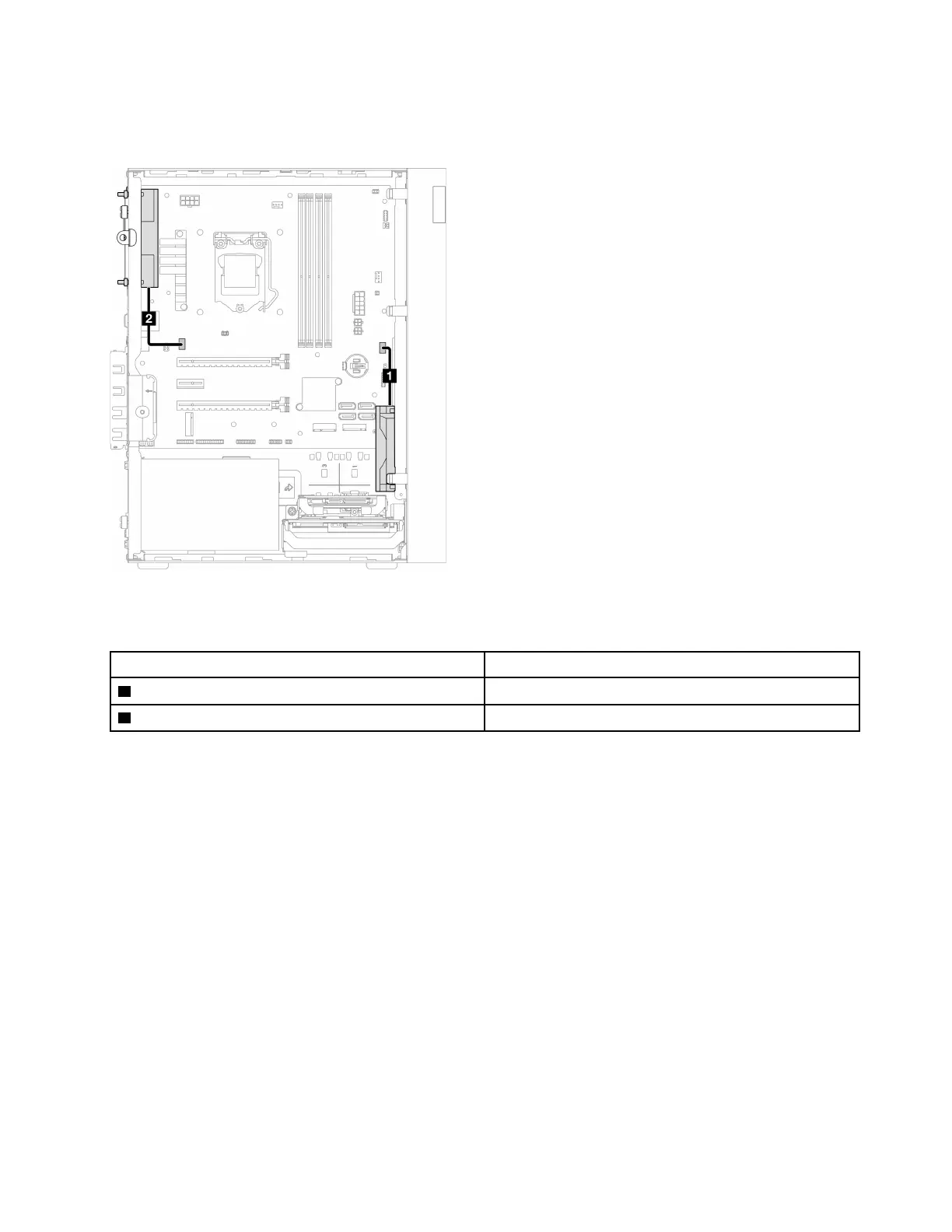

Figure 21. Cable routing for the front fan and rear fan
Table 19. Cable routing for the heat sink and fan module
From To
1 Front fan cable
Front fan connector
2 Rear fan cable
Rear fan connector
Make sure to follow the “Cable routing guidelines” in
“Internal cable routing” on page 19.
For the system-board connector locations, see
“System board components” on page 18.
Chapter 2. Server components 29
