Lenovo ThinkSystem ST50 V2 - Front Panel Replacement; Remove the Front Panel

Attention:
• Read
“Safety inspection checklist” on page iv and “Installation guidelines” on page 41 to ensure that you
work safely.
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
AU3iY3F7lq3qfqr5caGbIu
.
Procedure
Step 1. Install the front bezel.
a.
Insert the three plastic tabs on the bottom of the front bezel with the corresponding slots on
the front of the chassis.
b.
Pivot the front bezel towards to chassis until it snaps into place.

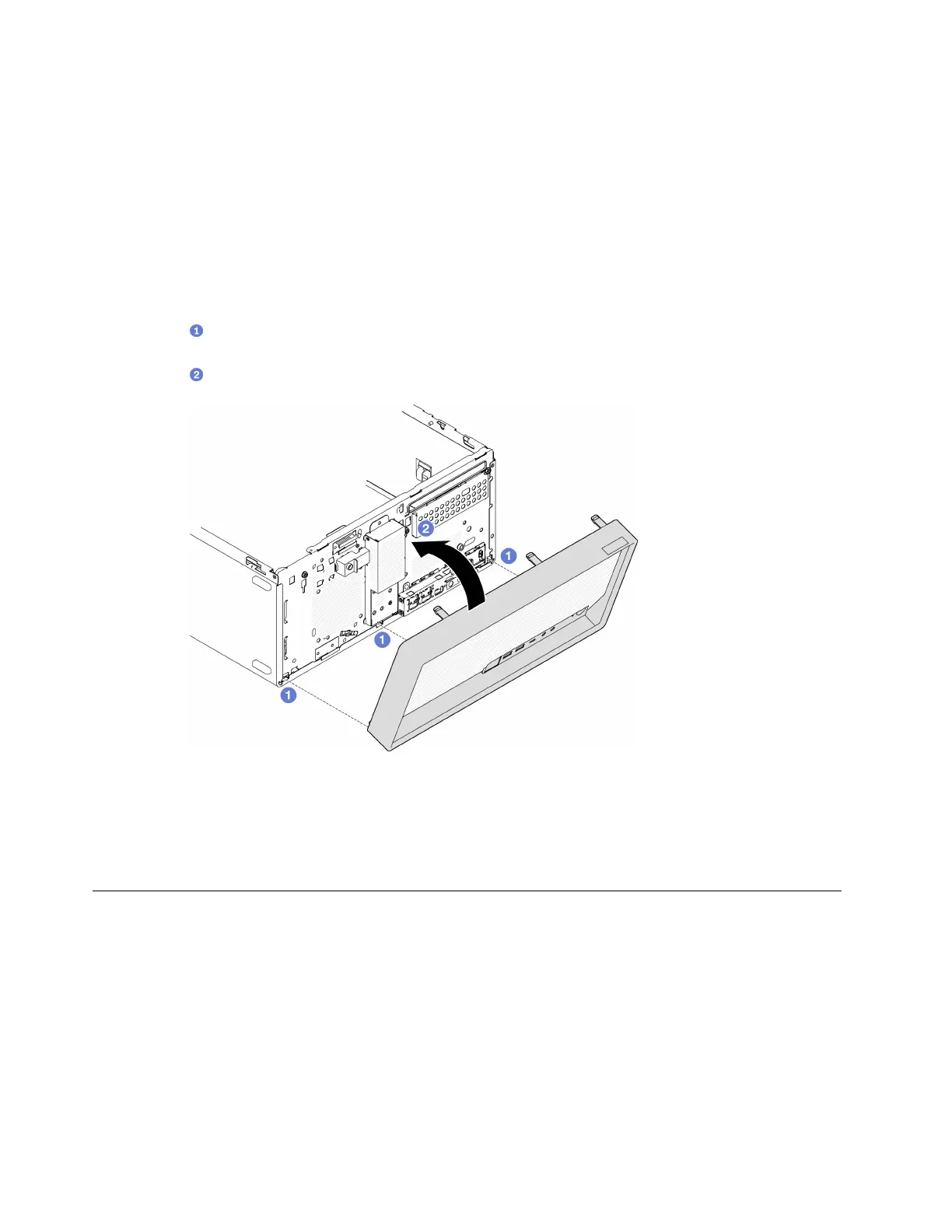

Figure 66. Installing the front bezel
After you finish
Proceed to complete the parts replacement, see
“Complete the parts replacement” on page 158.
Front panel replacement
Follow this procedure to remove and install the front panel.
Remove the front panel
Follow this procedure to remove the front panel.
