Lenovo ThinkSystem ST50 V2 Maintenance Manual

Step 2. Fasten the screw to secure the front panel to the chassis.

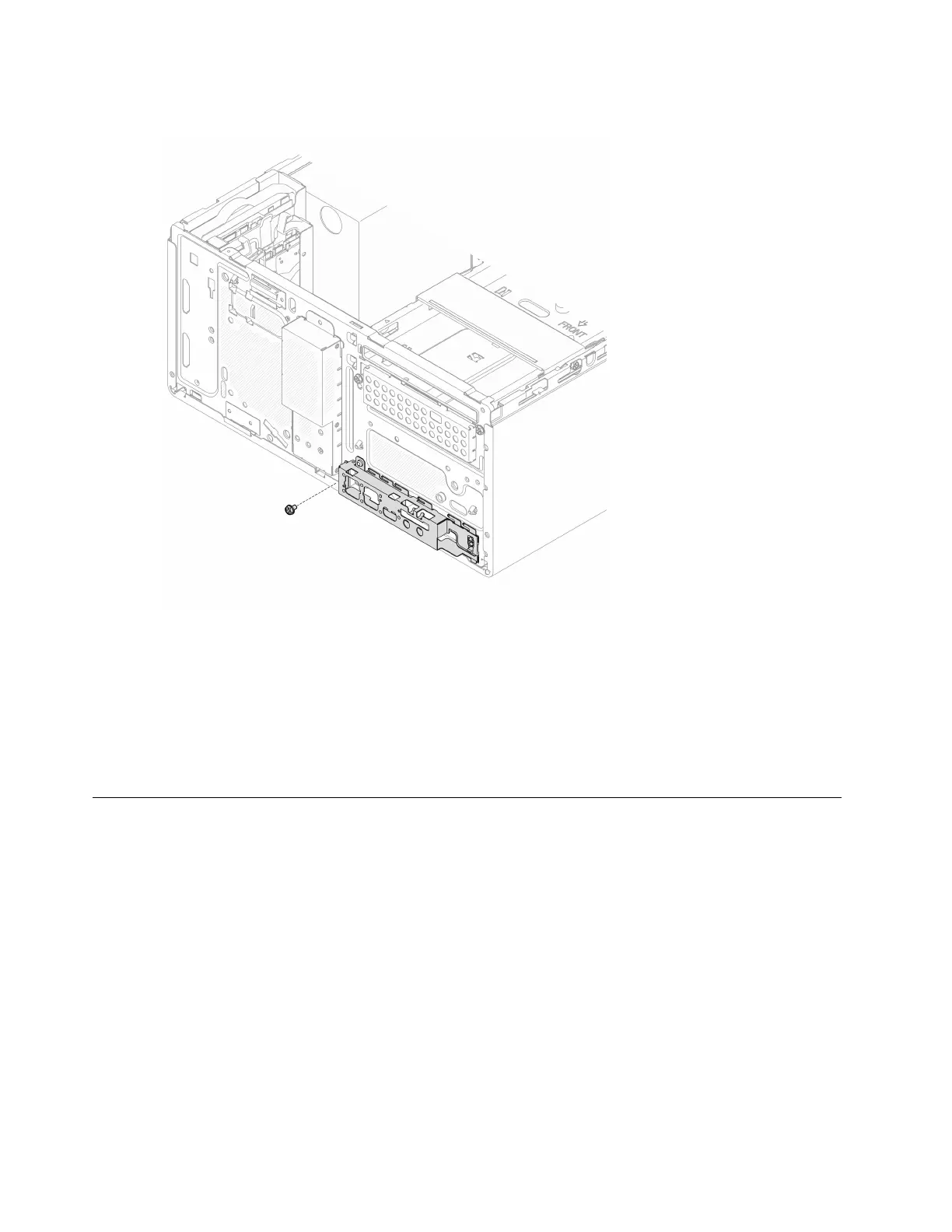

Figure 71. Securing front panel to the chassis
Step 3. Connect the power button cable to the system board, see “Internal cable routing” on page 19.
Procedure
1. Reinstall the front bezel, see
“Install the front bezel” on page 85.
2. Proceed to complete the parts replacement, see
“Complete the parts replacement” on page 158.
Heat sink and fan module replacement
Follow this procedure to remove and install the heat sink and fan module.
Remove the heat sink and fan module (trained technician only)
Follow this procedure to remove the heat sink and fan module. This procedure must be executed by a trained
technician.
92
ThinkSystem ST50 V2 Maintenance Manual

Lenovo ThinkSystem ST50 V2 Specifications

General

Memory	Up to 128 GB DDR4
Memory Slots	4 DIMM slots
Form Factor	4U Tower
Processor	Intel Xeon E-2300 series
Storage	Up to 4 x 3.5" or 8 x 2.5" drives
Storage Controller	Onboard SATA controller
RAID Support	RAID 0, 1, 5, 10
Expansion Slots	1x PCIe 3.0 x4
Network	1x Gigabit Ethernet port
Operating Systems Supported	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Management	Lenovo XClarity Controller
