Lenovo ThinkSystem ST50 V2 - Page 165

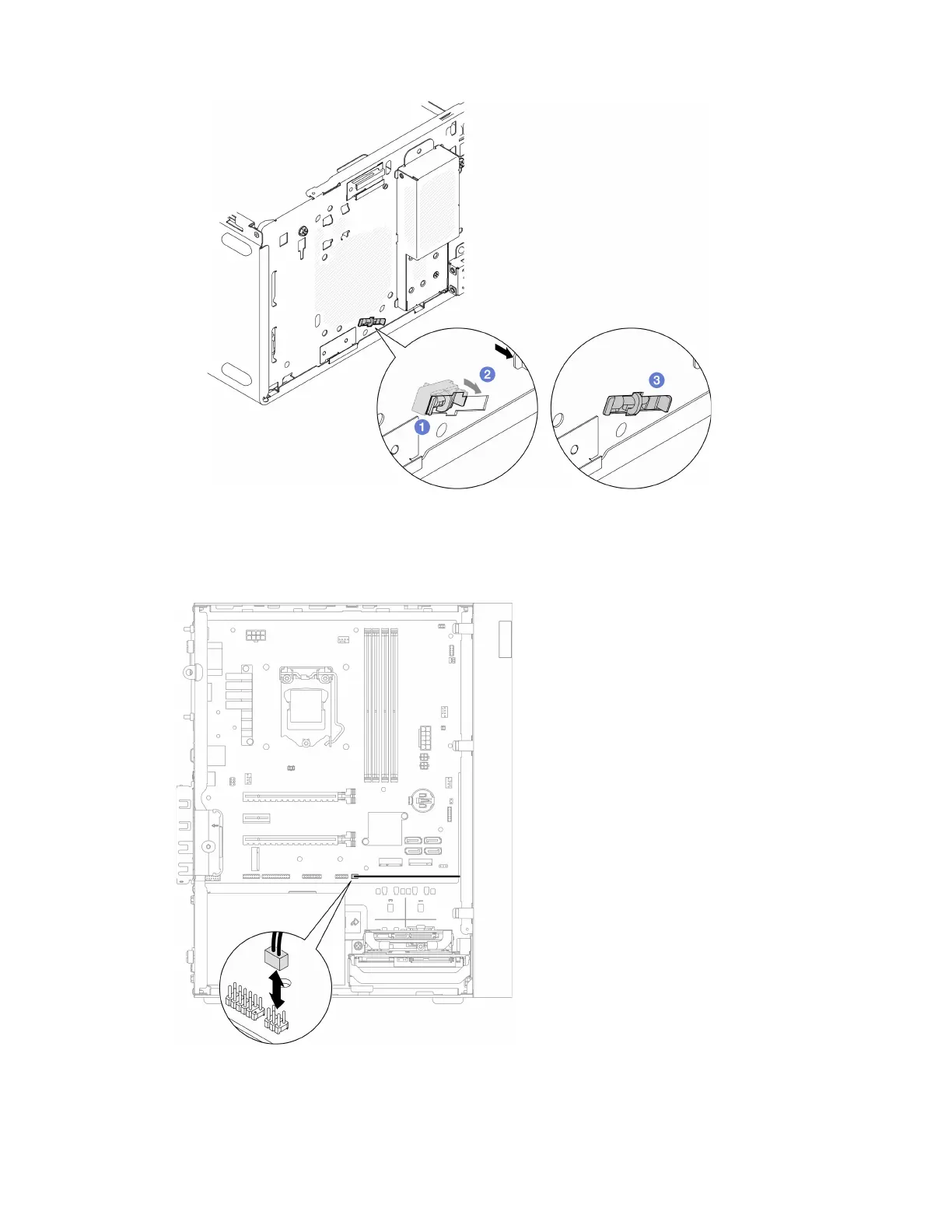

Figure 125. Installing the thermal sensor
Step 2. Connect the thermal sensor cable to the system board. To locate the connector on the system
board, see
“Internal cable routing” on page 19.
Figure 126. Connecting the thermal sensor cable
After you finish
Chapter 3. Hardware replacement procedures 157
