Step 4. If necessary, remove the drive from the retainer. Tear both sides of the retainer apart, and remove
the drive.
Remove a 3.5-inch drive from the retainer

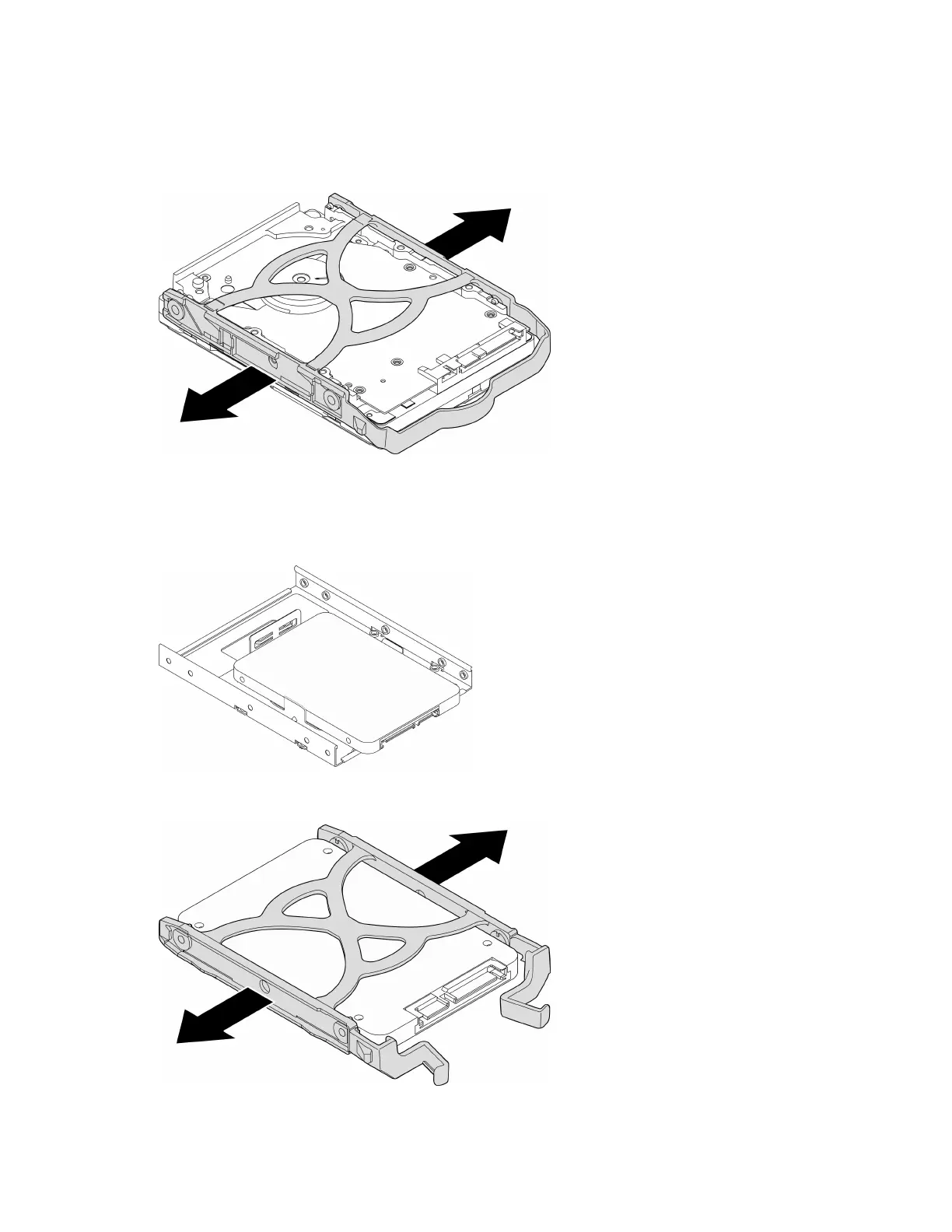

Figure 35. Removing a 3.5-inch drive from the retainer
Note: Depending on the configuration, the 3.5-inch drive may be the model in the illustration
below.
Remove a 2.5-inch drive from the retainer
Figure 36. Removing a 2.5-inch drive from the retainer
52 ThinkSystem ST50 V2 Maintenance Manual
