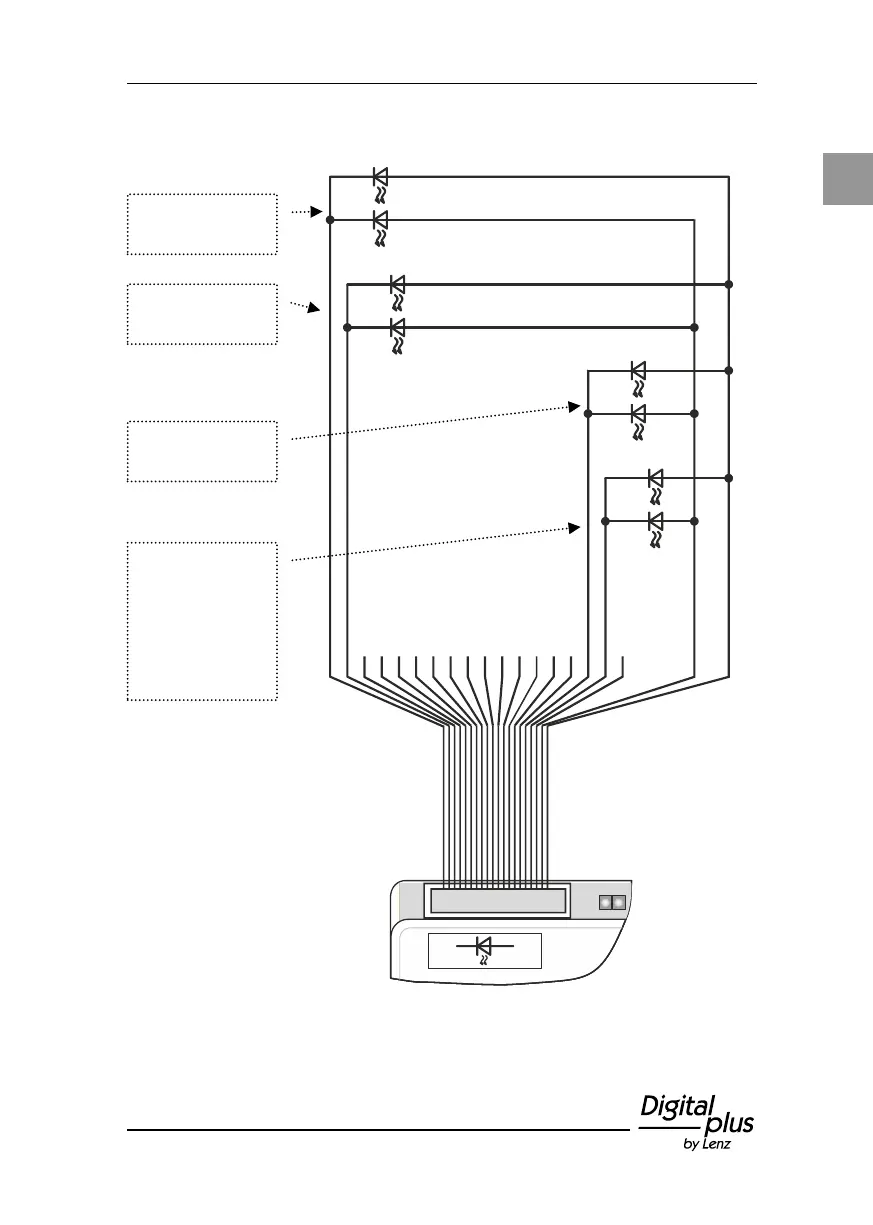

The following illustration shows the connections of the LEDs:
Anode LEDs setting “minus” / “OFF“
Anode LEDs setting “plus” / “ON“
W 1
""+
""-
W 2
""+
""-
W 16
""+
""-
ON
OFF
(not assigned)
19 red 1 black 2 white 3 grey 4 purple 5 blue 6 green 7 yellow 8 orange 9 red 10 brown 11 black 12 white 13 grey 14 purple 15 blue 16 green 17 yellow 18 orange 20 brown
Two LEDs for
point 1
Two LEDs for
point 2
Two LEDs for
point 16
…and so forth
up to
Two LEDs for
NOTAUS / EIN
(emergency
shutodown /
startup)
(optional)
