Installation
4-33
48XX/49XXSHB0399
4900Str021
L
PE
4
108
1
3
7
9
5
11
2
PEPE I K A B
6

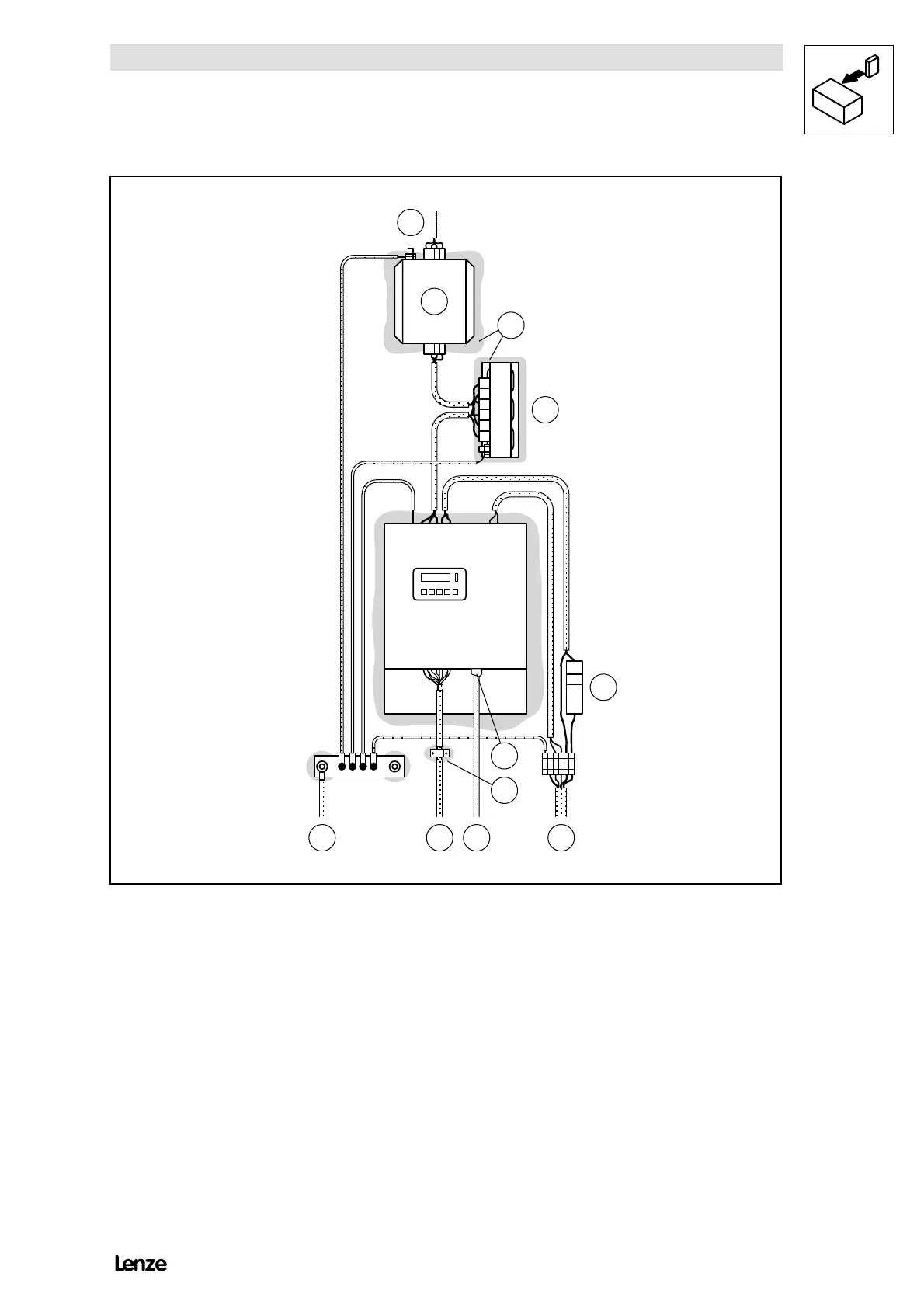

FIG 4-23 Part of the CE-typical drive system with 4902 ... 4907 on a mounting plate
1 Connection mains fuse
2 RFI filter
3 Uncoated, bare metal contact surfaces
4 Commutating choke
5 Armature fuse
6 Metal plug-in casing connected to screen or Lenze system cable
7 Uncoated surface for screen connection
8 PE connection
9 Screened signal cables
10 Screened cables for act. value encoder or setpoint encoder
11 Motor connection
