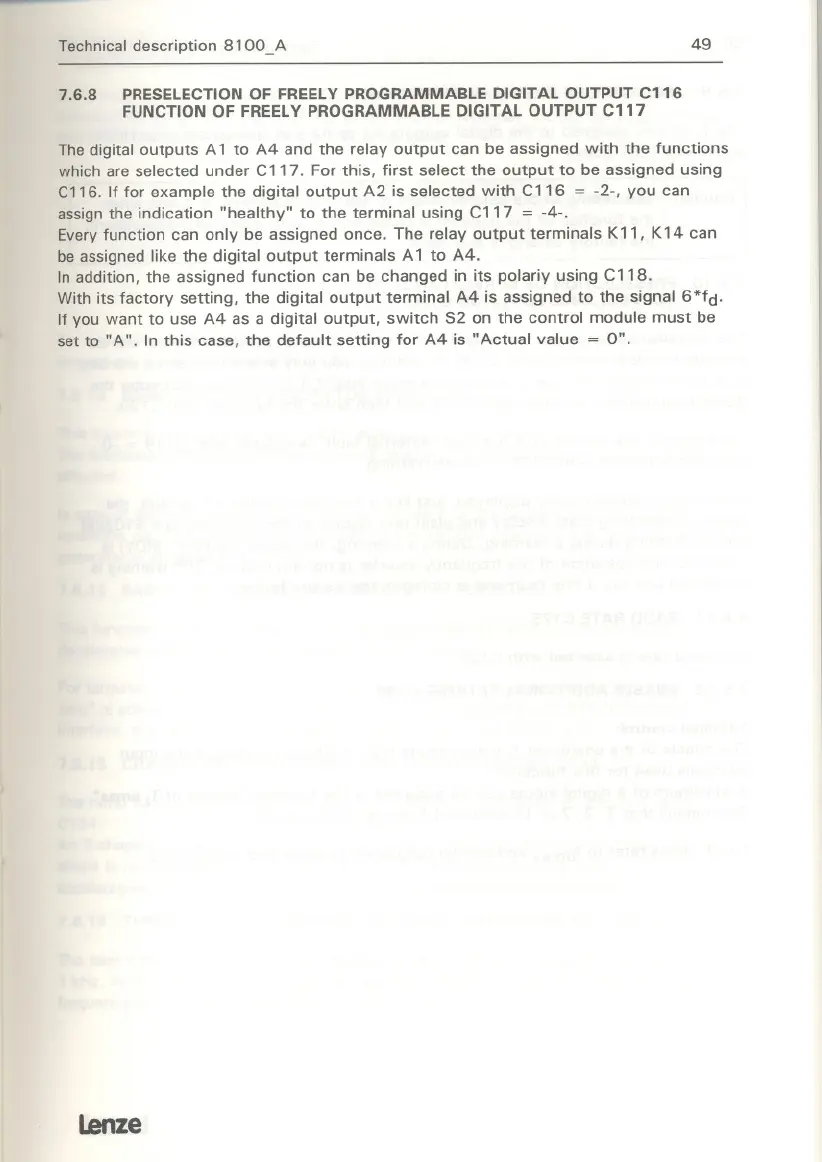

Technical description 8100_A
49
7.6.8 PRESELECTION OF FREELY PROGRAMMABLE DIGITAL OUTPUT C116
FUNCTION OF FREELY PROGRAMMABLE DIGITAL OUTPUT C117
The digital outputs Al to A4 and the relay output can be assigned with the functions
which are selected under Cl17. For this, first select the output to be assigned using
Cl16. If for example the digital output A2 is selected with Cl16
= -2-, you can
assign the indication "healthy" to the terminal using Cl17 = -4-.
Everyfunction can only be assigned once. The relay output terminals Kll, K14 can
be assigned like the digital output terminals Al to A4.
In addition, the assigned function can be changed in its polariy using Cl18.
With its factory setting, the digital output terminal A4 is assigned to the signal 6*fd.
Ifyou want to use A4 as a digital output, switch 52 on the control module must be
set to "A". In this case, the default setting for A4 is "Actual value = 0".
Lenze
