Technical data
Terminal description
Supply modules
4
l
47
EDS700ACBA EN 5.1
Digital inputs, digital outputs
X20 Labelling Description
DI1 External brake chopper control
X20.1: digital inputs
DI2 TRIP reset
DI3 SLAVE activation
DO1 Brake chopper status output
X20.2: digital outputs
Diagnostic information: ^ 126
DO2 Error message
GD Reference potential GND For DI1, DI2, DI3, DO1, DO2
i700PX020
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
flexible 0.2 ... 2.5 24 ... 12 − − 3.5 x 0.6
X20 Electrical data
Rated voltage 24 V
in accordance with
IEC 61131−2
Voltage range 19.2 ... 28.8 V
Residual ripple Max. ± 5 %
DI1
DI2
DI3
Current consumption Max. 8 mA
Polarity reversal
protection
When polarity is reversed: no function and no
destruction.
DO1
DO2
Current Max. 50 mA
GD Reference potential 0 V
X20.2
DO1
DO2
GD
X20.1
DI1
DI2
DI3
DC 24 V
(+19.2...+28.8 V)
i700S010

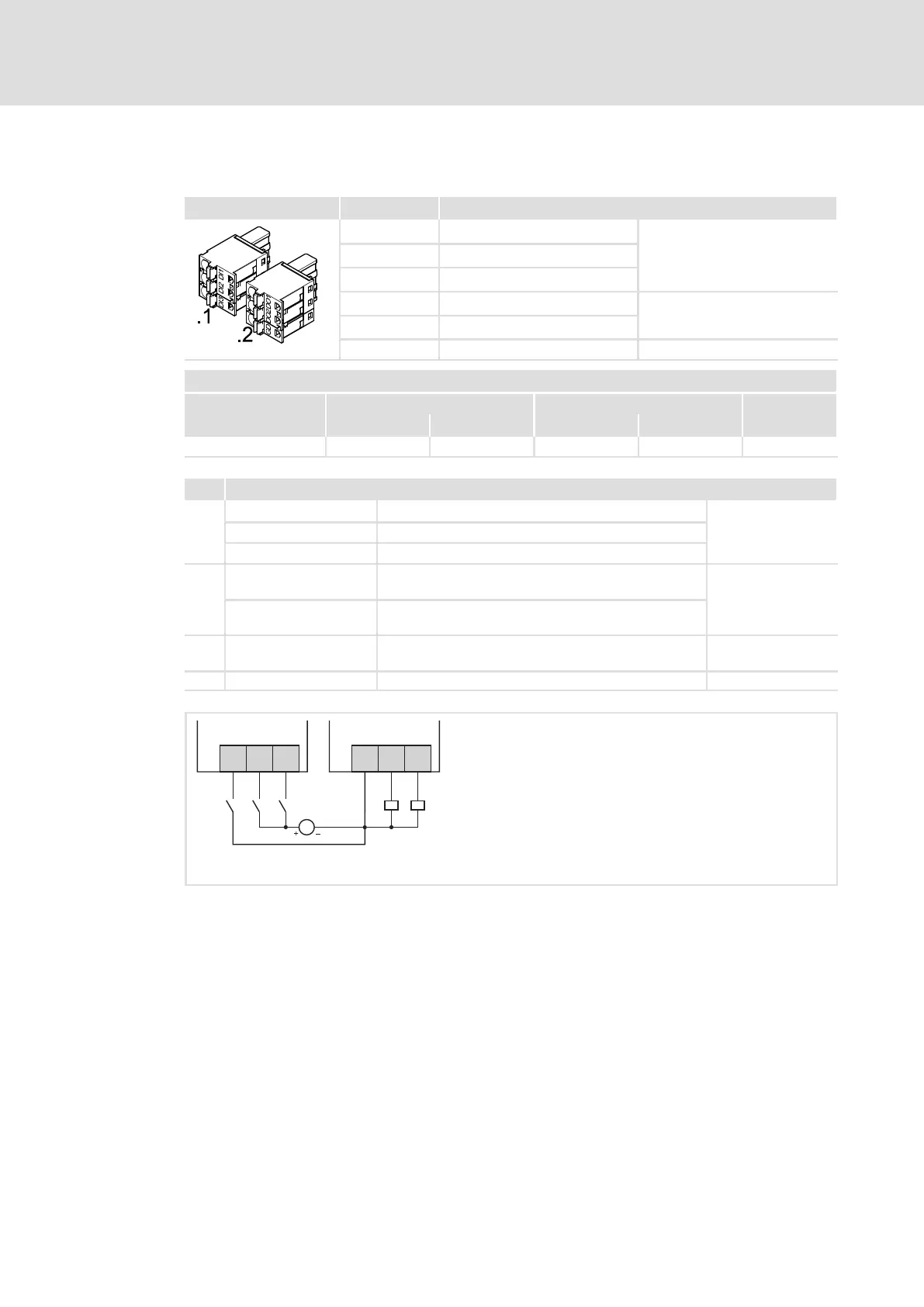

Fig. 2 Wiring of X20
X20 Connection of digital inputs and outputs at the power supply module
.1 Connector on the left−hand side
.2 Connector on the right−hand side
DIx Digital input
DOx Digital output (e.g. for controlling relays)
GD Reference potential GND
