Technical data
Terminal description
Axis modules
4
l
52
EDS700ACBA EN 5.1
Integrated safety engineering
, Further information on the use of this connection can be found ...
ƒ in the chapter "Safety engineering" if the "STO" safety function is to be used
(¶ 128).
ƒ in the chapter "Electrical installation" if safety functions will not be used
(¶ 107).

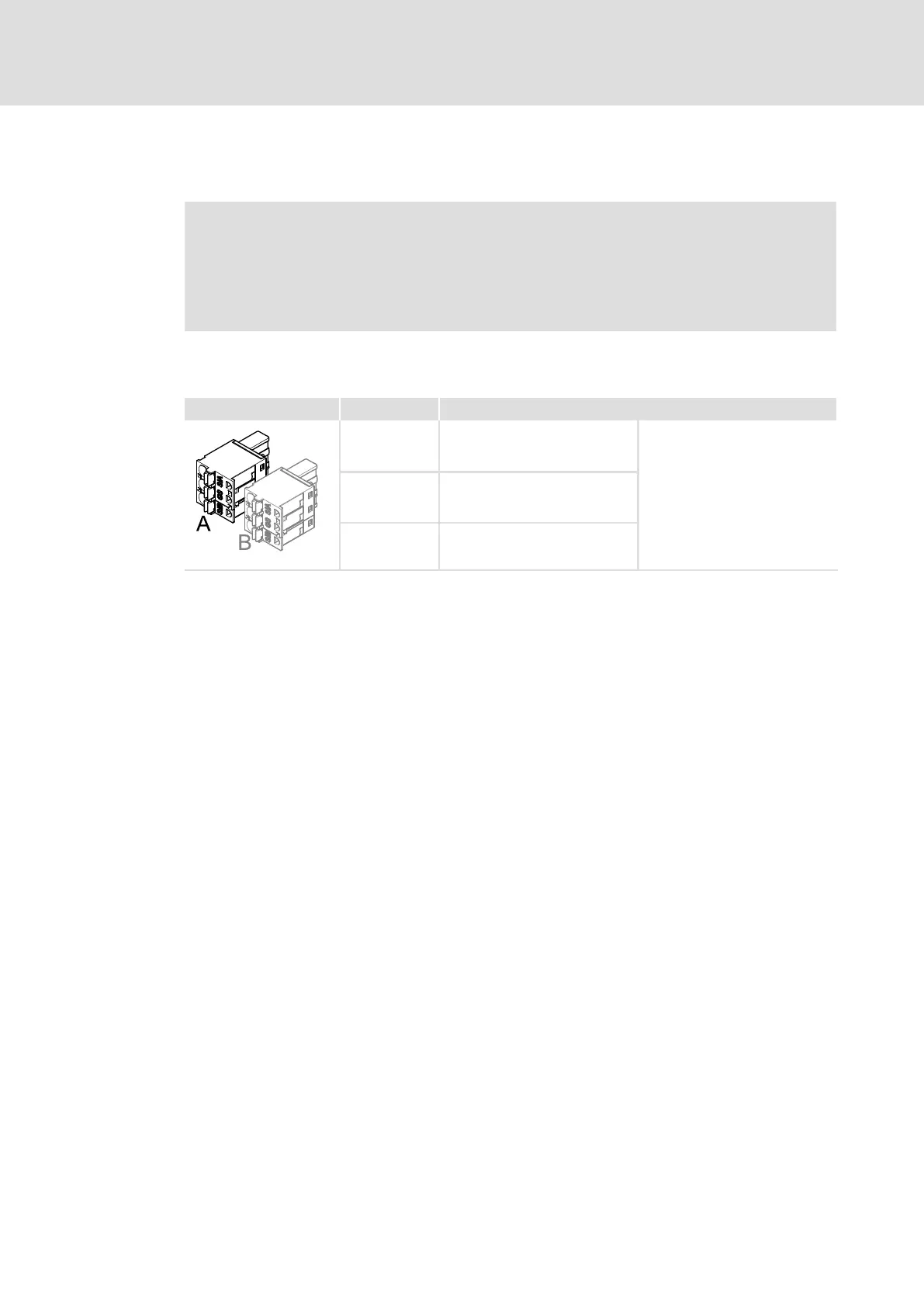

E70ACMxxxxx4xAxETx − Basic Safety − STO
X1 Labelling Description
SIA Safe input, channel A
On double axis devices, there are
two of these connections. For
the assignment to the axes, the
designations "A" / "B" are used.
Independently of this, the
two−channel safe input is always
provided with the channels A
and B.
GS Reference potential GND
SIB Safe input, channel B
i700P00x
