Technical data
Terminal description
Axis modules
4
l
53
EDS700ACBA EN 5.1

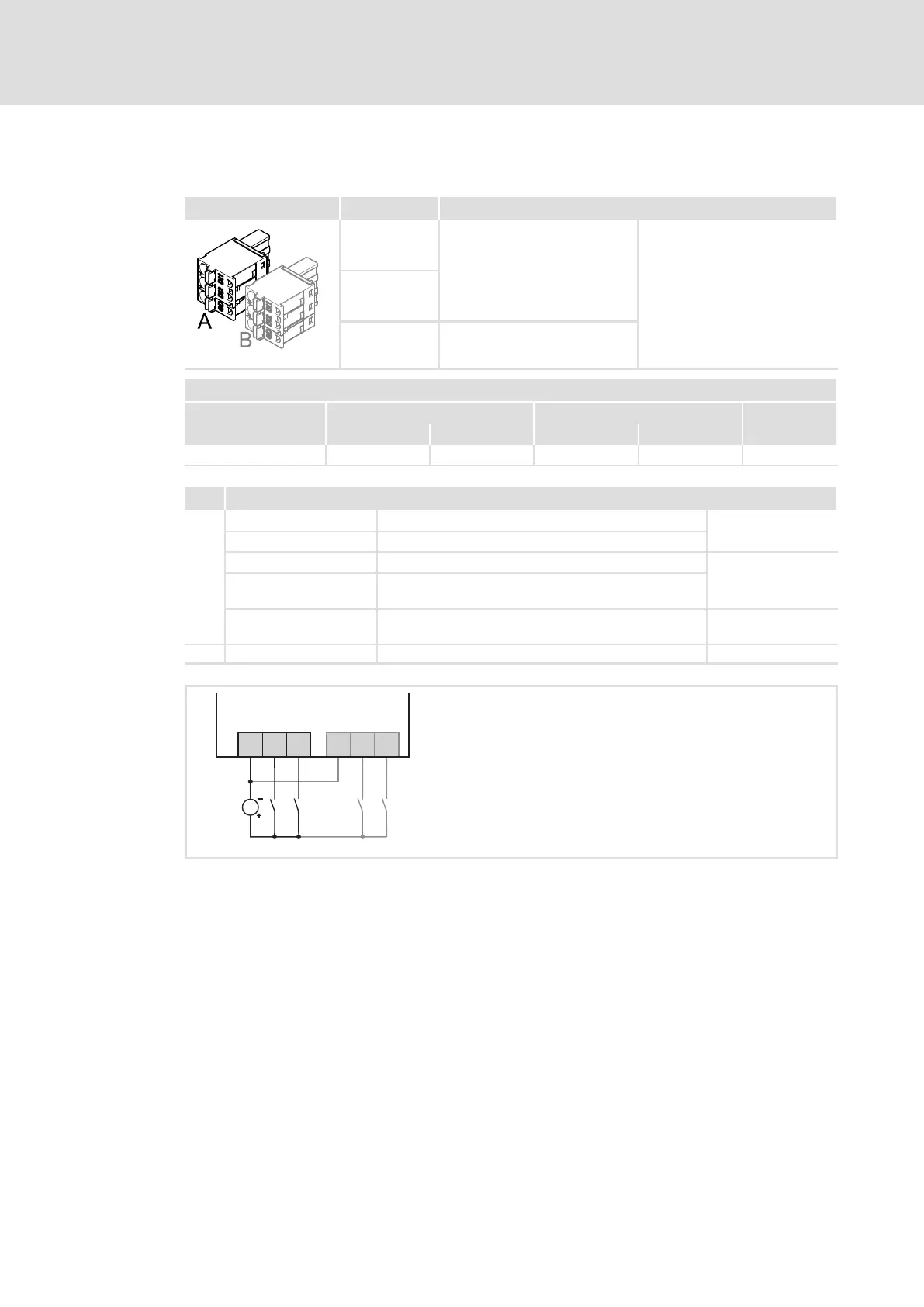

Digital inputs
X2 Labelling Description
DI1
Touch probe inputs On double axis devices, there are
two of these connections. For
the assignment to the axes, the
designations "A" / "B" are used.
DI2
GD Reference potential GND
i700P00x
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
flexible 0.2 ... 2.5 24 ... 12 − − 3.5 x 0.6
X2 Electrical data
DI1
DI2
Rated voltage
24 V
in accordance with
IEC 61131−2
Voltage range 19.2 ... 28.8 V
Residual ripple Max. ± 5 %
Current consumption Max. 8 mA
Polarity reversal
protection
When polarity is reversed: no function and no
destruction.
GD Reference potential 0 V
DI1
DI2
GD
B
DC 24 V
(+19.2...
+28.8 V)
DI1
DI2
GD
A
X2
i700M00x
Fig. 5 Wiring of X2
X2 Connection of digital inputs of axis module
A 1−axis module
B Additionally for 2−axis module
DIx Digital input
GD Reference potential GND
