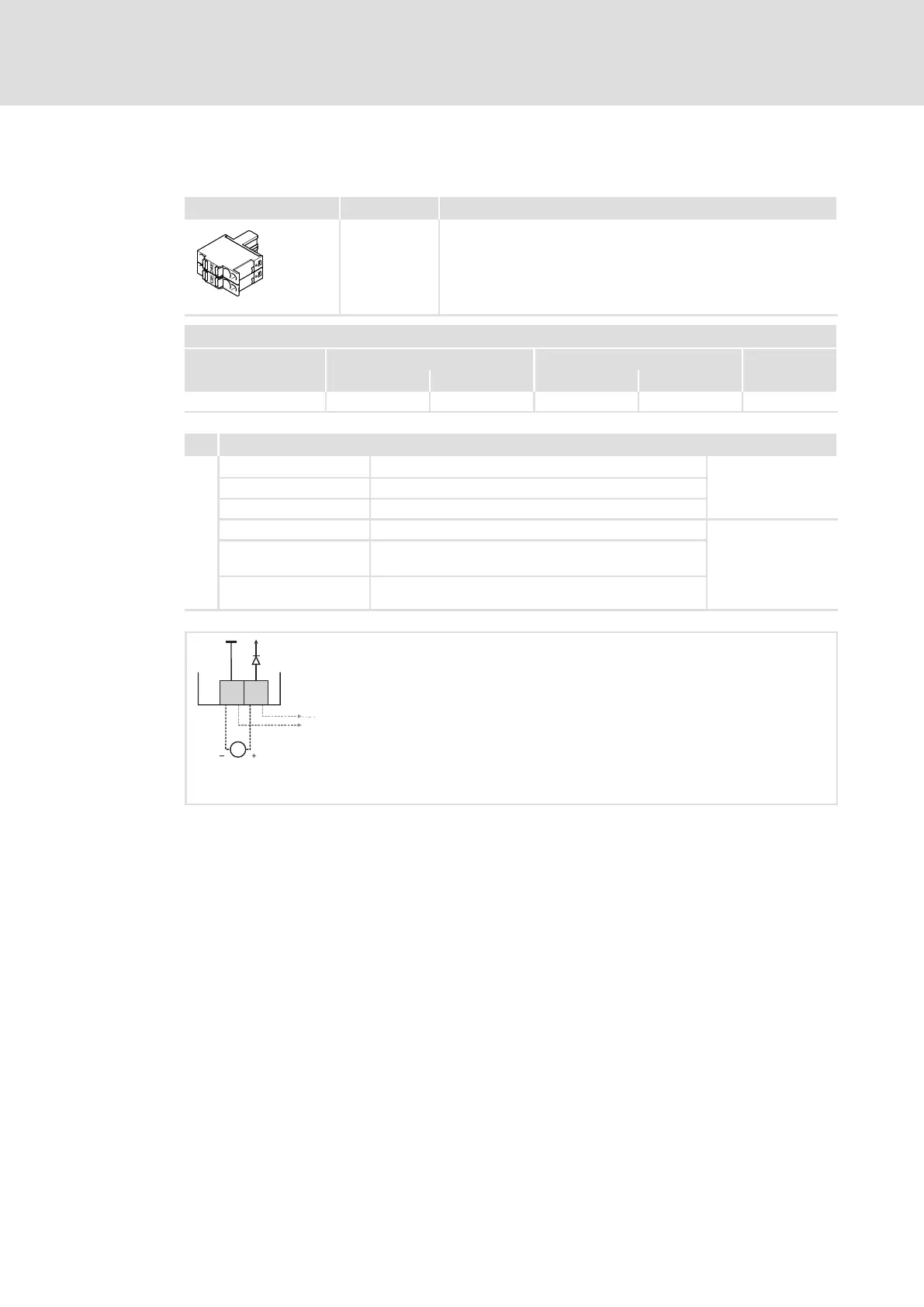

Technical data
Terminal description
Axis modules
4
l
54
EDS700ACBA EN 5.1
External voltage supply
X3 Labelling Description
24E 24−V supply voltage of control electronics from a safely separated
power supply unit (SELV/PELV)
GE Reference potential (GND)
i700P00x
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
flexible 0.2 ... 2.5 24 ... 12 − − 3.5 x 0.6
X3 Electrical data
24E
GE
Rated voltage 24 V
in accordance with
IEC 61131−2
Voltage range 19.2 ... 28.8 V
Residual ripple Max. ± 5 %
Current consumption See technical data, ^ 4.2.1
Polarity reversal
protection
When polarity is reversed: no function and no
destruction.
Cable protection Circuit breaker with tripping characteristic B or C
Standard blade−type fuses
X21, X3
X3
DC 24 V
(+19.2...+28.8 V)
GND-I
GE
24E
i700M00x
Fig. 6 Wiring of X3
X3 Supply voltage connection of axis module control electronics, can be looped
through
24E DC 24 V, acc. to IEC 61131−2, SELV/PELV
GE Reference potential GND
