Mechanical installation
Notes on mounting the device version in push−through design
Assembly in push−through technique (thermal separation)
5
l
82
EDS700ACBA EN 5.1
Suitable mounting place
Providing a wide contact area and the integrated seal, the mounting area of the device
complies with the requirements of the class of protection IP54. The mounting has to be
carried out properly at a mounting position with sufficient rigidity. The "mounting frame"
accessories serve to achieve the sufficient rigidity more easily.
0 1

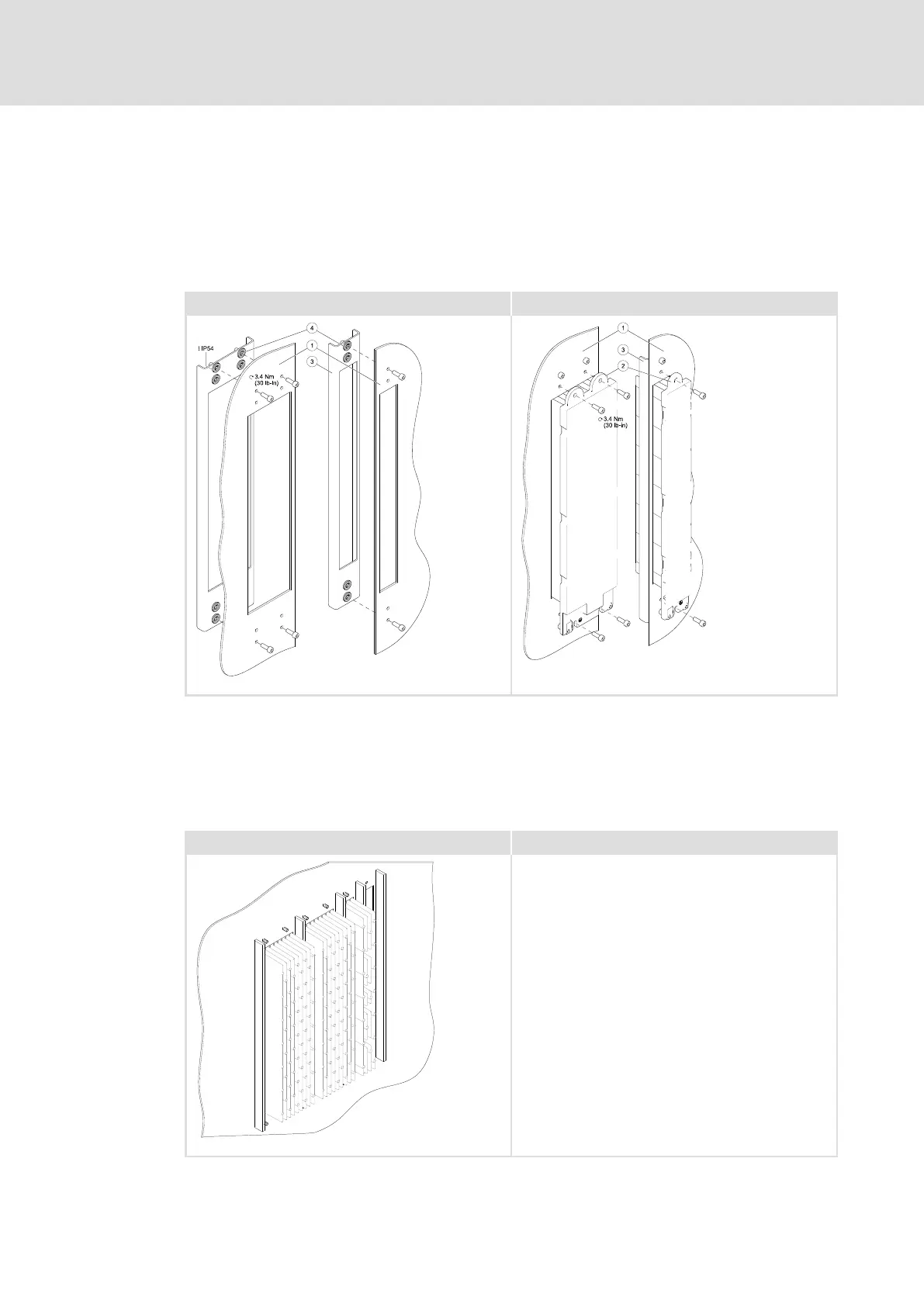

Example for achieving rigidity of the mounting position with E70AZMBHM00x mounting
frame
0 Step 1: Mounting of the frames
1 Step 2: Mounting of the devices
Bars attached on the sides of the mounting cutouts are an option to achieve the required
rigidity.
0
0 Example for achieving rigidity of the mounting position with bars
