Lenze E84DGFCR Series User Manual

3 Product description
3.3 Connections and interfaces
14
Lenze · Inverter Drive 8400 motec (PROFINET® option) · DMS 5.0 EN · 02/2019 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.3 Connections and interfaces

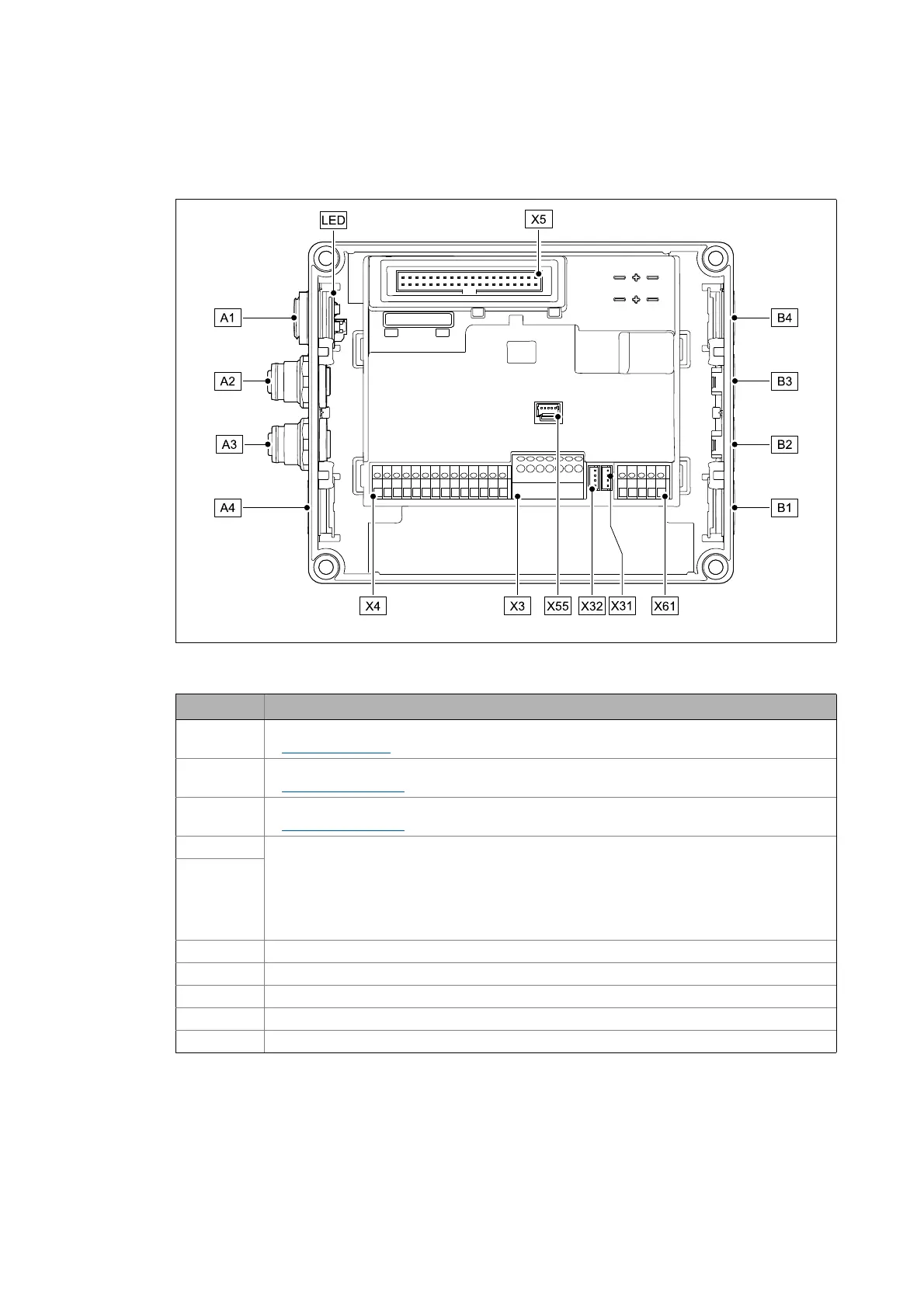

[3-1] PROFINET Communication Unit
E84DG029
Pos. Description
A1 / LED Position for LEDs for PROFINET status display
LED status displays
( 66)
A2 PROFINET port 1 (M12 socket, 5-pole, D-coded)
PROFINET connection
( 23)
A3 PROFINET port 2 (M12 socket, 5-pole, D-coded)
PROFINET connection
( 23)
A4 Positions for further freely designable inputs and outputs:
• Digital inputs
•Digital output
• Analog input (only for E84DGFCRxJx)
• Relay output (only for E84DGFCRxJx)
• Connection of "Safety Option" safety system (only for E84DGFCRxJx)
B1 ... B4
X3 / X4 / X61 Terminal strips for wiring the connections at A4 and B1 ... B4
X5 Plug connector for connection to the Drive Unit
X31 Plug connector for wiring PROFINET port 1 at A2
X32 Plug connector for wiring PROFINET port 2 at A3
X55 Plug connector for the wiring of the LEDs to A1

Lenze E84DGFCR Series Specifications

General

Category	Control Unit
Input voltage range	24 VDC
Number of digital inputs	8
Protection class	IP20
Product series	E84DGFCR
Communication interface	CANopen
Operating temperature range	0°C to +55°C
