6 Commissioning
6.4 Setting the IP configuration
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

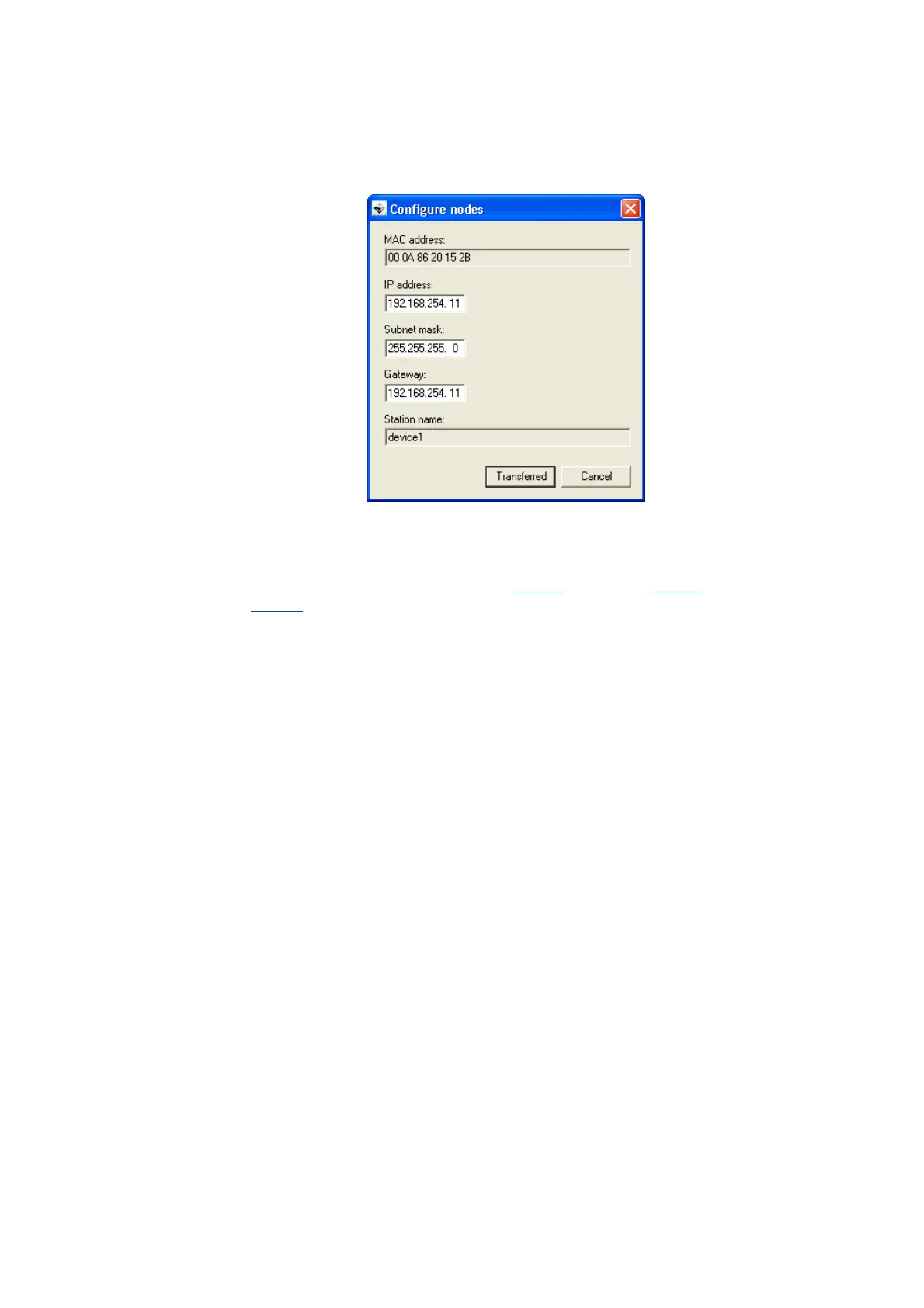

2. By double-clicking on the individual IP parameters, you can set the IP configuration for each
PROFINET node in the Configure nodes dialog window.
3. Click Transferred.
• The IP configuration is transferred to the corresponding PROFINET node.
• Changes in the IP parameters will become effective immediately.
•The IP parameters are written to codes C13000
(IP address), C13001 (subnet mask), and
C13002
(gateway address) of the Communication Unit.
By clicking the Find device button in the Assign IP addresses dialog window (see step 1), you
can check whether the configuration was transferred successfully.
4. With the C00002 = "11: Save all parameter sets" device command, the current IP
configuration is saved non-volatilely.
