3 Mechanical installation
Standard mounting
EDK94AZMS DE/EN/FR/ES/IT 3.0
26

H1_MechINS−Fi NbMontage
Installation steps
SSP94NF004
How to proceed for standard mounting:

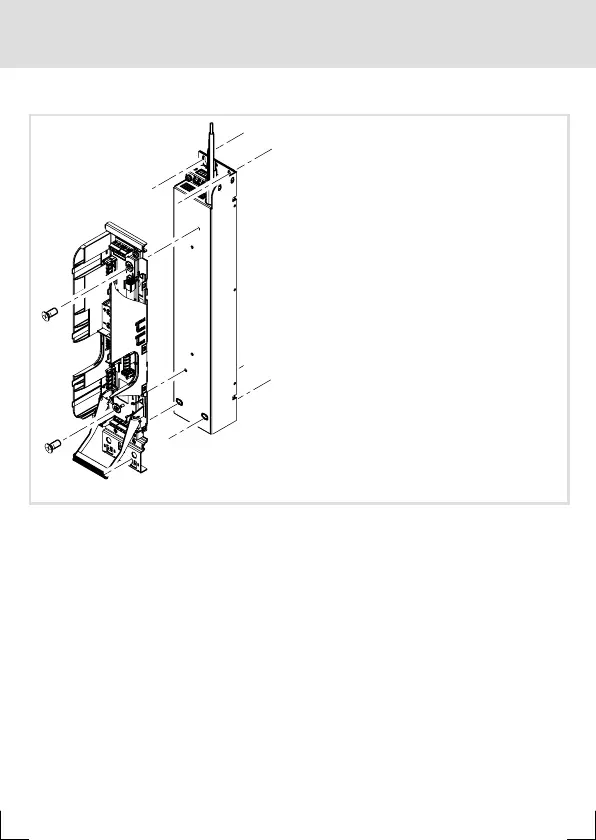

1. Tightly screw together filter and mounting base.
– 2 screws M5 x 20
2. Attach the unit to the prepared mounting plate, but do not screw down completely
yet.
3. Pre−assemble further units.
4. Align all units.
5. Screw units tightly to the mounting plate.
6. Now the electrical installation can be carried out.
 Tip!
Under limited space conditions, filter and mounting base can be connected
electrically when step 1 has been carried out.
