3 Installation mécanique
Montage standard
EDK94AZMS DE/EN/FR/ES/IT 3.0
40
H1_MechINS−Fi NbMontage

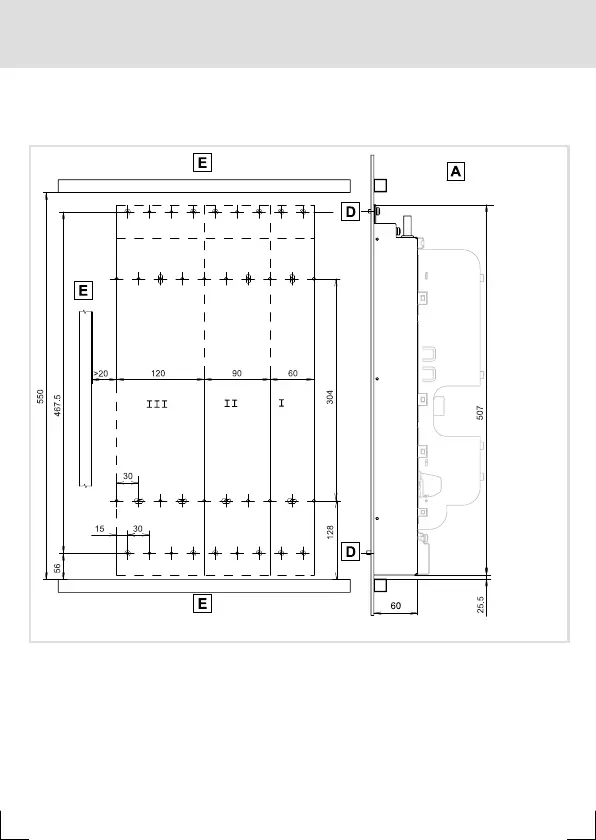

Montage standard
Encombrements
SSP94NF003
Filtre et socle de montage
Grille perforée pour le filtre
Cheminement de câble
I ... III Taille d’appareil, trous de fixation utilisés
Cotes en [mm]
