4 Electrical installation
EDK94AZMS DE/EN/FR/ES/IT 3.0
30
H1_E_INST−Fi Verdraht
4 Electrical installation
Screw terminal data
Terminal X301 Connection cross−sections Tightening torque
Mains filter [mm
2
] [AWG] [Nm] [lb−in]
E94AZMS0034 2.5 14 0.5 ... 0.6 4.42 ... 5.31
E94AZMS0094 4 12 0.5 ... 0.6 4.42 ... 5.31
E94AZMS0184
E94AZMS0314
10 8 1.2 ... 1.5 10.6 ... 13.3
There is an M5 connection screw for the PE conductor.

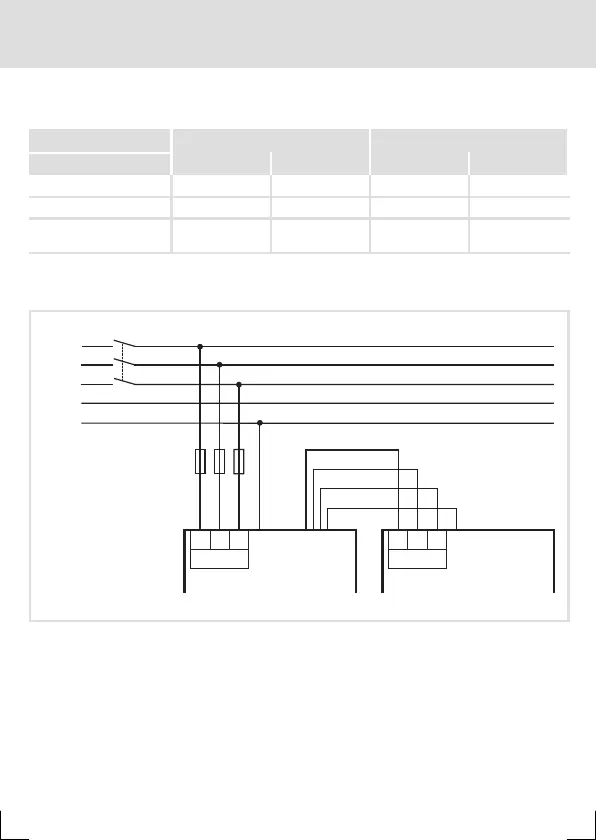

Installation steps
L1
1 (BK)
2 (BK)
3 (BK)
PE (GN/YE)
L1L2 L2
L3 L3PE PE
L3
N
PE
L1
L2
F1...F3
X301 X100
X302
E94AZxSxxxx E94AZPxxxxx
K1
SSP94NF007
How to connect the filter:
1. Connect filter output cable (X302) to terminal X100 at the mounting base.
2. Connect mains cable to terminal X301.
3. Attach PE conductor to PE screw using fork−type or ring cable lug.
The PE connection must comply with EN 50178.
Tightening torque 3.0 Nm (26.5 lb−in).
