Lenze E94AZMS Series User Manual

Mechanical installation
Side−by−side mounting − device sizes II and III
3
EDK94AZMS DE/EN/FR/ES/IT 3.0
29

H1_MechINS−Fi NbMontage
Installation steps
SSP94NF006
How to proceed for side−by−side mounting:

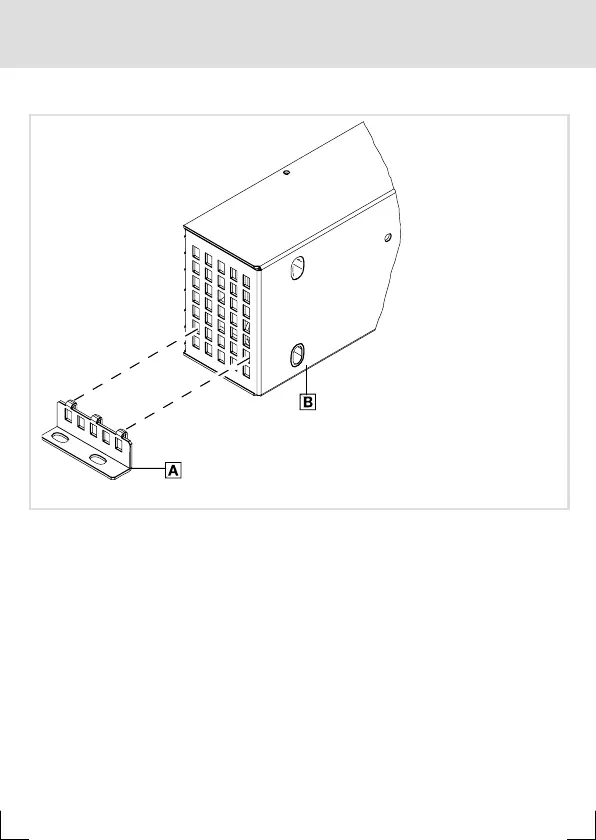

1. Hook the angle bracket  into the grid hole pattern of the filter .
2. Mount the filter to the left of the mounting base.
– Filter turned by 90° compared to standard mounting.
– Do not screw down completely yet!
– The mounting holes do not match the typical 9400 grid hole pattern.
3. Pre−assemble further units.
4. Align all units.
5. Screw units tightly to the mounting plate.
