Lenze ECS series

Electrical installation
Control terminals
Analog input
5

111
EDKCSEX064 DE/EN/FR 6.0
5.3.2 Analog input
AI-
AG
AI+
GND
82k5
X6
= =
82k5
250R
X3
5
6
3.3 nF
3.3 nF
"
"
ECSXA015

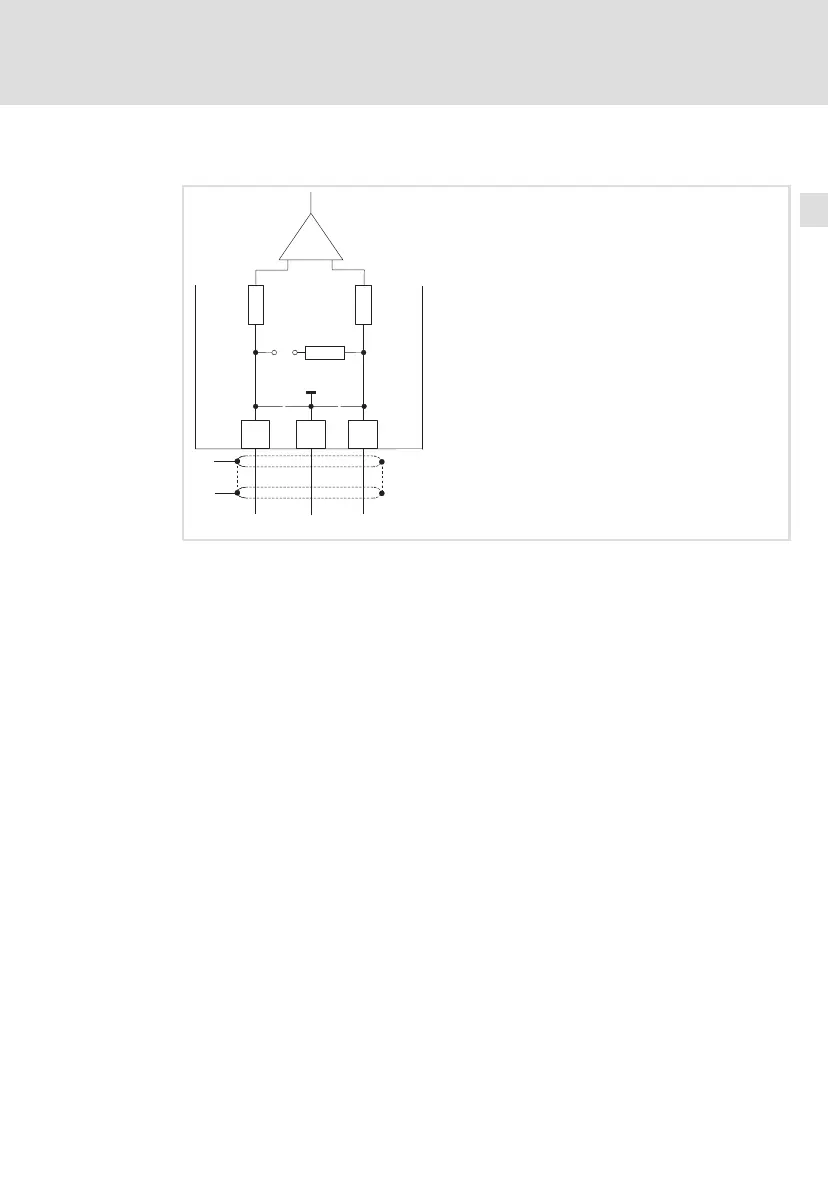

Fig. 5−8 Analog input at X6
 HF−shield termination by large−surface connection to functional earth (see
Mounting Instructions for ECSZS000X0B shield mounting kit)
