Lenze ECS series Mounting Instructions

Electrical installation
Control terminals
Safe torque off
5

114
EDKCSEX064 DE/EN/FR 6.0
>1
µP
U
V
W
X
Y
Z
X6
X25
X2
Sl2
Sl1
U
V
W
SO
GND
S24
B+
BD1
B-
BD2
 
&
&
&
&
&
&
ECSXA100

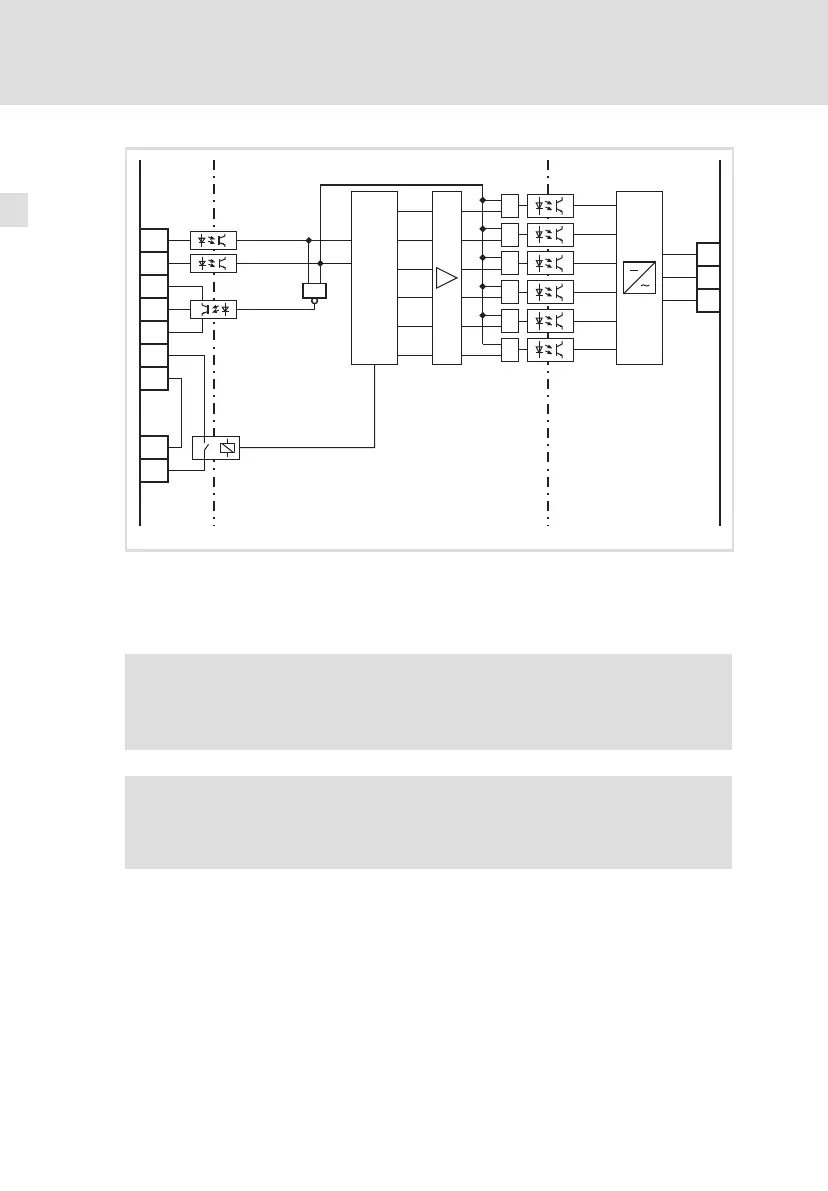

Fig. 5−9 Implementation of the "safe torque off" function
Area 1: Inputs and outputs
Area 2: Circuit for the internal control
Area 3: Power output stage
 Stop!
Use insulated wire end ferrules when wiring the "safe torque off"
circuits to X6.
 Interconnection examples can be found in the download area
(Application Knowledge Base) at:
www.Lenze.com
