Elektrische Installation
Systembus (CAN) verdrahten
5
56
EDKCSEX064 DE/EN/FR 6.0
Verdrahtung des Systembus(CAN)
ECS_COB004

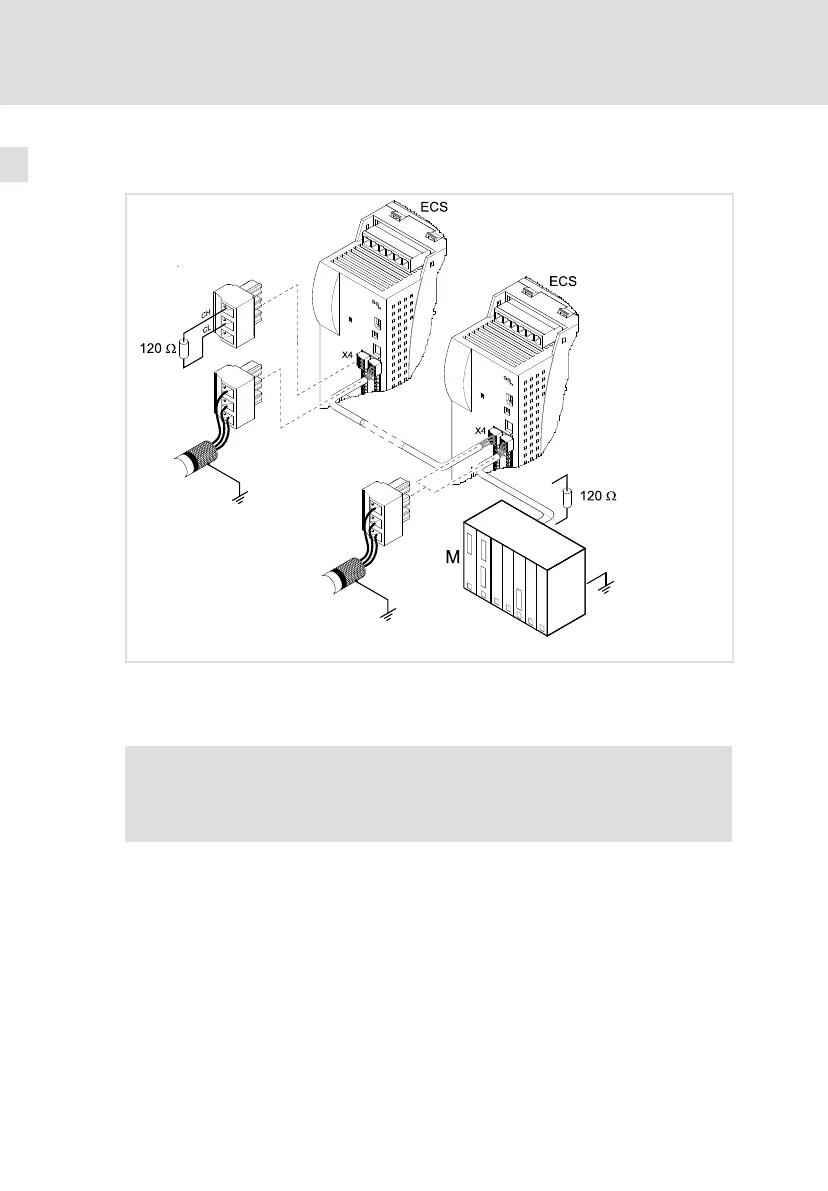

Abb. 5−11 Beispiel: Verdrahtung des Systembus (CAN) über Schnittstelle X4
ECS ECS−Achsmodul
M Übergeordnete Steuerung, z. B. ETC
Hinweis!
Schließen Sie je einen Busabschluss−Widerstand (120 W) am ersten
und letzten Knoten des Systembus (CAN) an.
