Configuration
Configuring MotionBus/system bus (CAN)
Monitoring of the synchronisation (sync time slot)
8
181
EDBCSXS064 EN 4.0
8.1.7 Monitoring of the synchronisation (sync time slot)
Sync-window
Sync cycleSync cycle
Sync-signal
ECSXA474

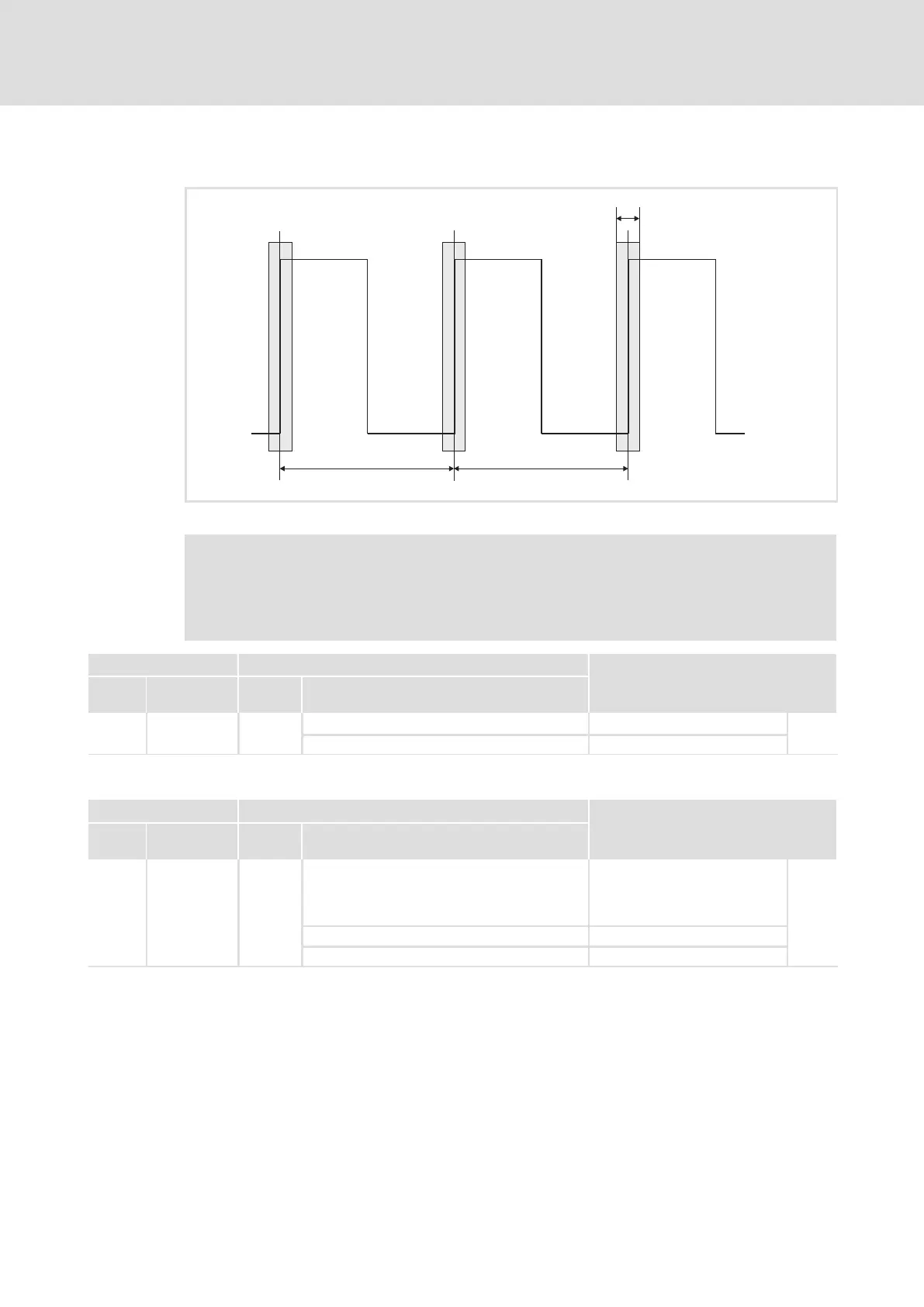

Fig. 8−3 "Time slot" for the LOW−HIGH edges of the sync signal
Note!
A jitter ( 179) up to ±200 ms on the LOW−HIGH edges of the sync signal is
permissible. The amount of the jitter has an impact on the parameterisation of
the "time slot".
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C1123 Sync window 0.010
Synchronisation window
181
0.000 {0.001 ms} 6.500
CAN sync response
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C0366 Sync Response 1
CAN sync response for interface
X4 (CAN)
The value "1" should always be
set!
181
0 No response
1 Response
