Function library
InNeg
12

313
EDBCSXS064 EN 4.0
12.24 InNeg
Function
This function block serves to invert the input signals. The function block can invert digital,
analog and phase signals.
ƒ The values of the analog signals are in a decimal range of ±32767.
ƒ The values of the phase signals are in a decimal range of ±2147483648.
The values are calculated before the selected main function block is calculated. Thus the
calculated values are made available to the subsequent blocks in the current cycle.
InNeg
C7130/1
32767
-32767
-1
C7130/2
32767
-32767
-1
C7150/1
2147483647
-2147483647
-1
C7110/1
-1
C7110/2
-1
C7110/3
-1
C7150/2
2147483647
-2147483647
-1
C7131/1
C7131/2
C7111/1
C7111/2
C7111/3
C7151/1
C7151/2
651
652
651
652
653
651
652
InNeg-AnIn1
InNeg-AnIn2
InNeg-PhiIn1
InNeg-DigIn1
InNeg-DigIn2
InNeg-DigIn3
InNeg-PhiIn2
InNeg-AnOut1
InNeg-AnOut2
InNeg-PhiOut1
InNeg-DigOut1
InNeg-DigOut2
InNeg-DigOut3
InNeg-PhiOut2
ECSXA251

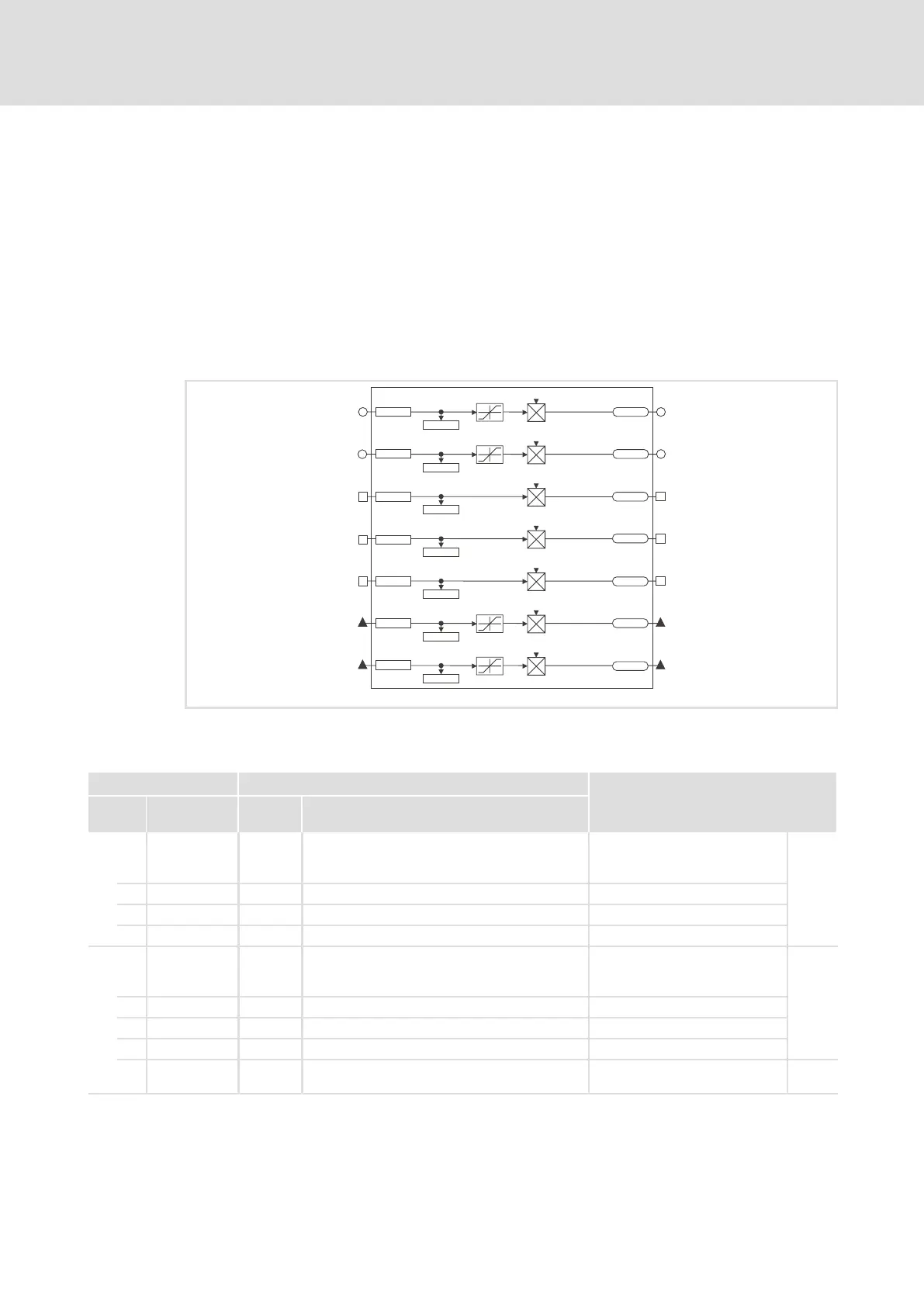

Fig. 12−25 InNeg function block
Codes
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C7110 Display of the digital input
signals in the function block
InNeg (signal inversion)
 313
1 InNeg−digV InNeg−DigIn1
2 InNeg−digV InNeg−DigIn2
3 InNeg−digV InNeg−DigIn3
C7111 Selection of the digital input
signals for the InNeg function
block (signal inversion)
 313
1 InNeg−dig 1000 0 (FALSE, not assigned) Source for InNeg−DigIn1
2 InNeg−dig 1000 0 (FALSE, not assigned) Source for InNeg−DigIn2
3 InNeg−dig 1000 0 (FALSE, not assigned) Source for InNeg−DigIn3
For possible signals see "selection list − digital
signals"
 428
