3 Product description
3.1 Application as directed
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3 Product description
3.1 Application as directed
The communication module ...
• is an accessory module that can be used in conjunction with the following standard devices:
• is a device intended for use in industrial power systems.
• should only be used under the operating conditions prescribed in this documentation.
• can only be used in EtherNet/IP networks.
Any other use shall be deemed inappropriate!

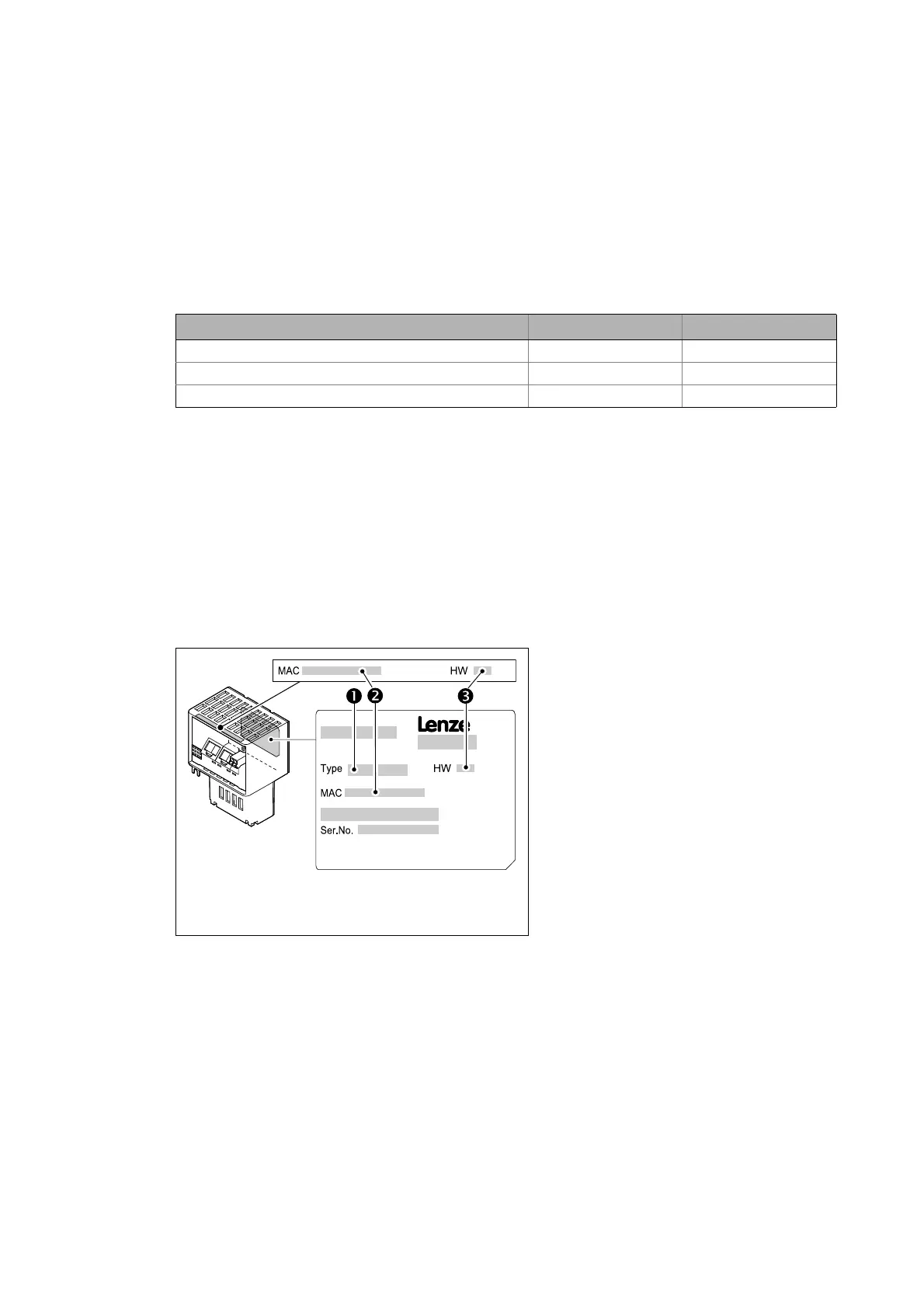

3.2 Identification
The type designation as well as the hardware and software version of the communication module
are indicated on the nameplate:
[3-1] Identification data
Product series Type designation From software version
Inverter Drives 8400 StateLine E84AVSCxxxxx 11.00
Inverter Drives 8400 HighLine E84AVHCxxxxx 11.00
Inverter Drives 8400 TopLine E84AVTCxxxxx 02.00
E84AYCEO006
1 Type designation (type)
E84 Product series
AVersion
Y Module identification: Extension module
C Module type: Communication module
EO EtherNet/IP
V/S V: Coated version
S: Standard version
2 MAC address (MAC)
00-0A-86-xx-yy-zz:
Hardware address of the communication
module for unique identification in the
network
3 Hardware version (HW)
