Lenze · E84AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 10/2013 · TD17 15
3 Product description
3.4 Connections and interfaces
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4 Connections and interfaces

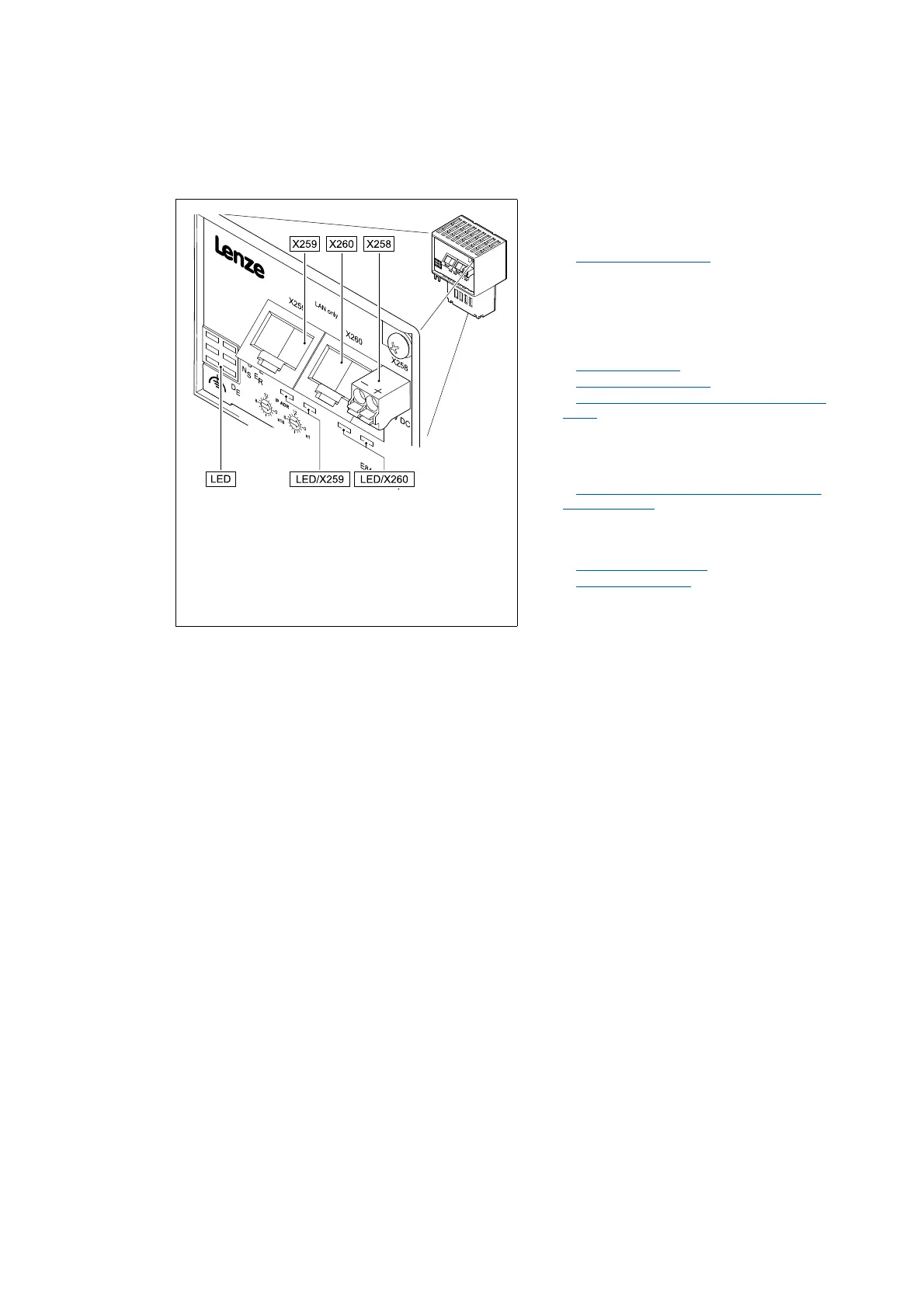

[3-2] E84AYCEO communication module (EtherNet/IP)
E84AYCEO003
X258 External voltage supply of the communication
module
• 2-pin plug connector with spring connection
External voltage supply
( 33)
X259
X260
EtherNet/IP terminals
• RJ45-sockets
• each with 2 LED status displays for
diagnostics
Network topology
( 27)
EtherNet/IP connection
( 29)
Status indicators at the RJ45 sockets (X259,
X260) ( 94)
x1
x16
Rotary coding switches for node address
setting (IP ADR)
Setting node addresses by means of rotary
coding switches ( 40)
MS
ST
NS
ER
DE
5 LED status displays for diagnostics
Module status displays
( 90)
CIP™ status displays
( 91)
