8 I/O data transfer (implicit messages)
8.1 I/O data mapping
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.1 I/O data mapping
I/O data transfer takes place via the MCI interface.
• Access to the I/O data takes place via port blocks LP_MciIn and LP_MciOut.
•The LP_MciIn port block maps the received data objects.
•The LP_MciOut port block maps the data objects to be sent.
• Up to 16 data words (32 bytes) per direction can be exchanged.
• The ports/function blocks of the I/O data objects are interconnected with the Lenze »Engineer«.

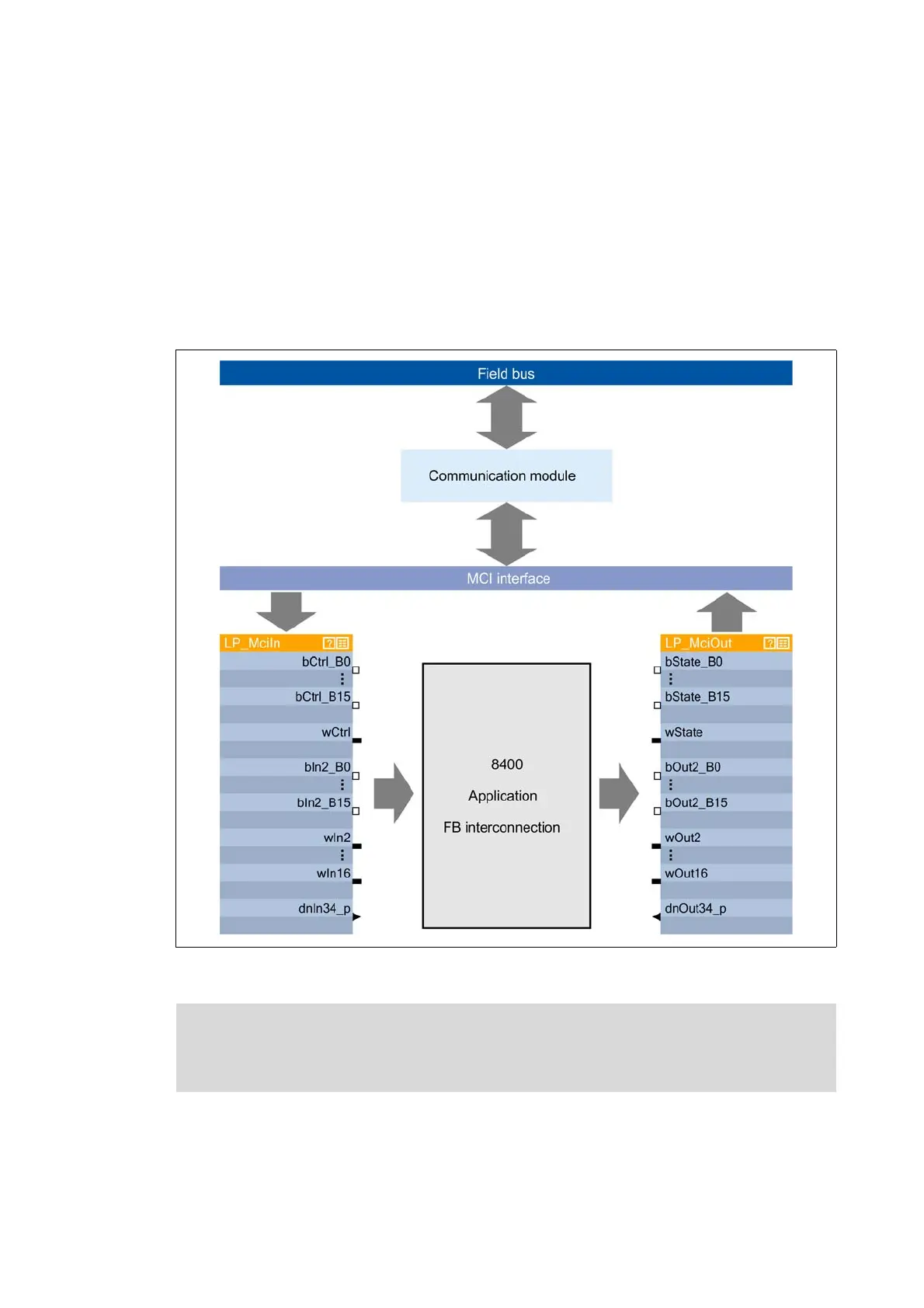

[8-1] Outer and inner data transfer between bus system, inverter, and application
Software manual / online help for the Inverter Drive 8400
Here you will find detailed information on the port/function block interconnection in
the »Engineer« and on the port blocks.
