11 Diagnostics
11.2 Diagnostics with the »Engineer«
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
11.2 Diagnostics with the »Engineer«

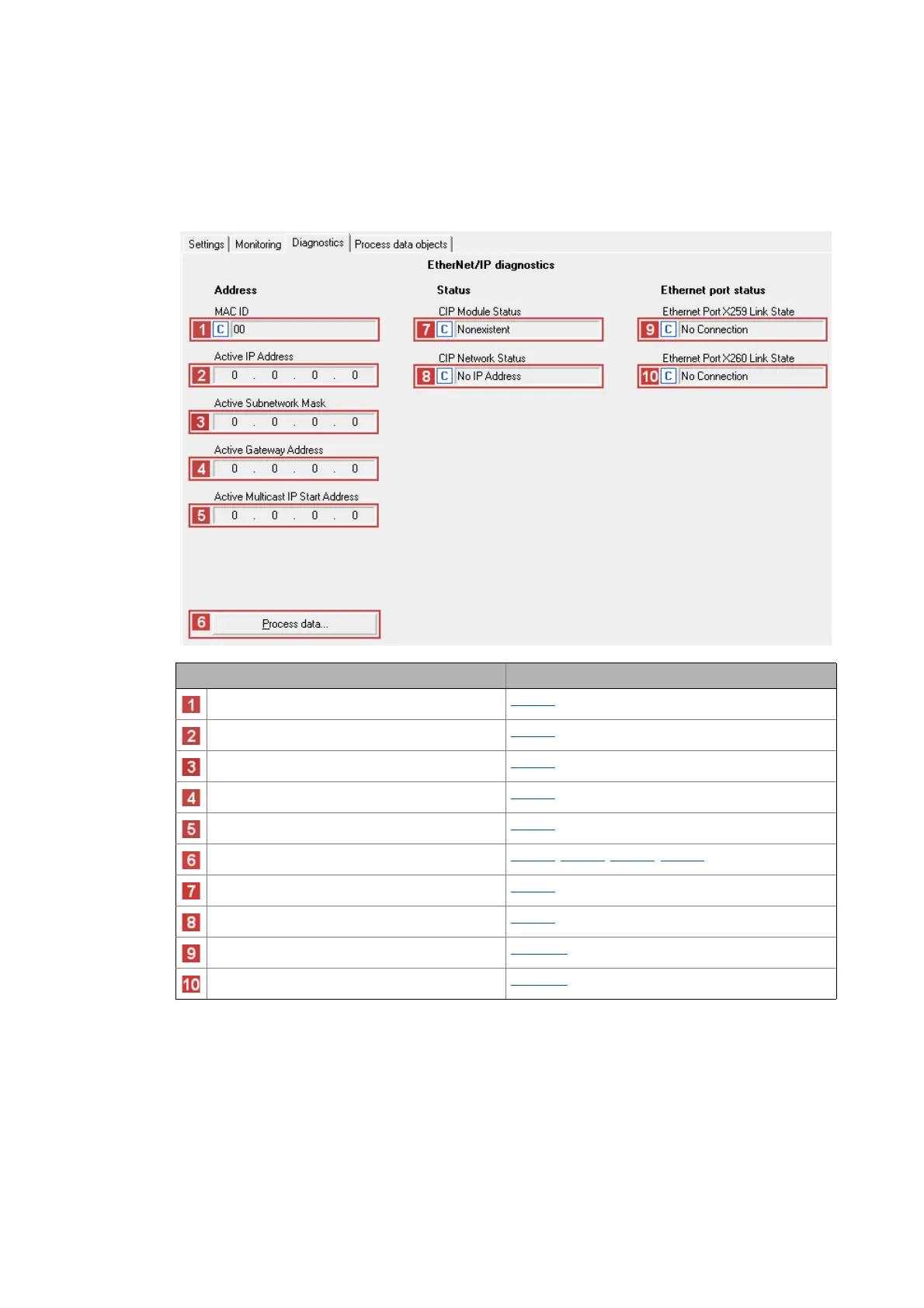

In the »Engineer«, the Diagnostics tab displays various pieces of EtherNet/IP diagnostic
information.
Display Code
MAC-ID C13003
Active IP Address C13010
Active Subnetwork Mask C13011
Active Gateway Address C13012
Active multicast IP address C13016
Process data C13850, C13851, C13852, C13853
CIP Module Status C13861
CIP Network Status C13862
Ethernet Port X259 connection status C13863/1
Ethernet Port X260 connection status C13863/2
