Lenze · E84AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 10/2013 · TD17 69
8 I/O data transfer (implicit messages)
8.5 I/O configuration with »RSLogix 5000« version 19 or lower
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

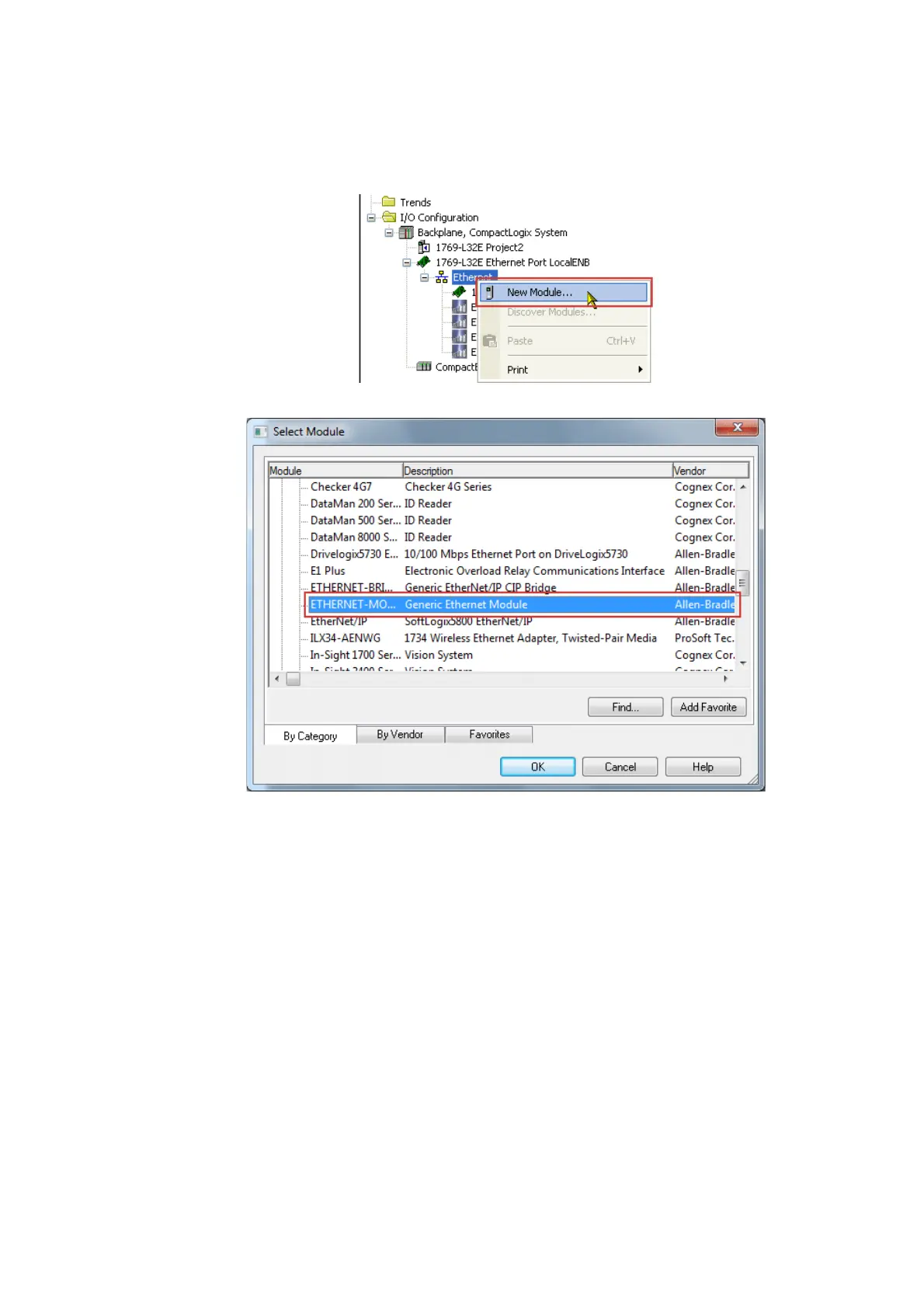

2. Right click on "Ethernet" and execute the "New Module ..." command from the context
menu.
3. Open "Communications" and select "ETHERNET-MODULE | Generic Ethernet Module".
4. Confirm the selection with OK.
