Lenze · E84AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 10/2013 · TD17 93
11 Diagnostics

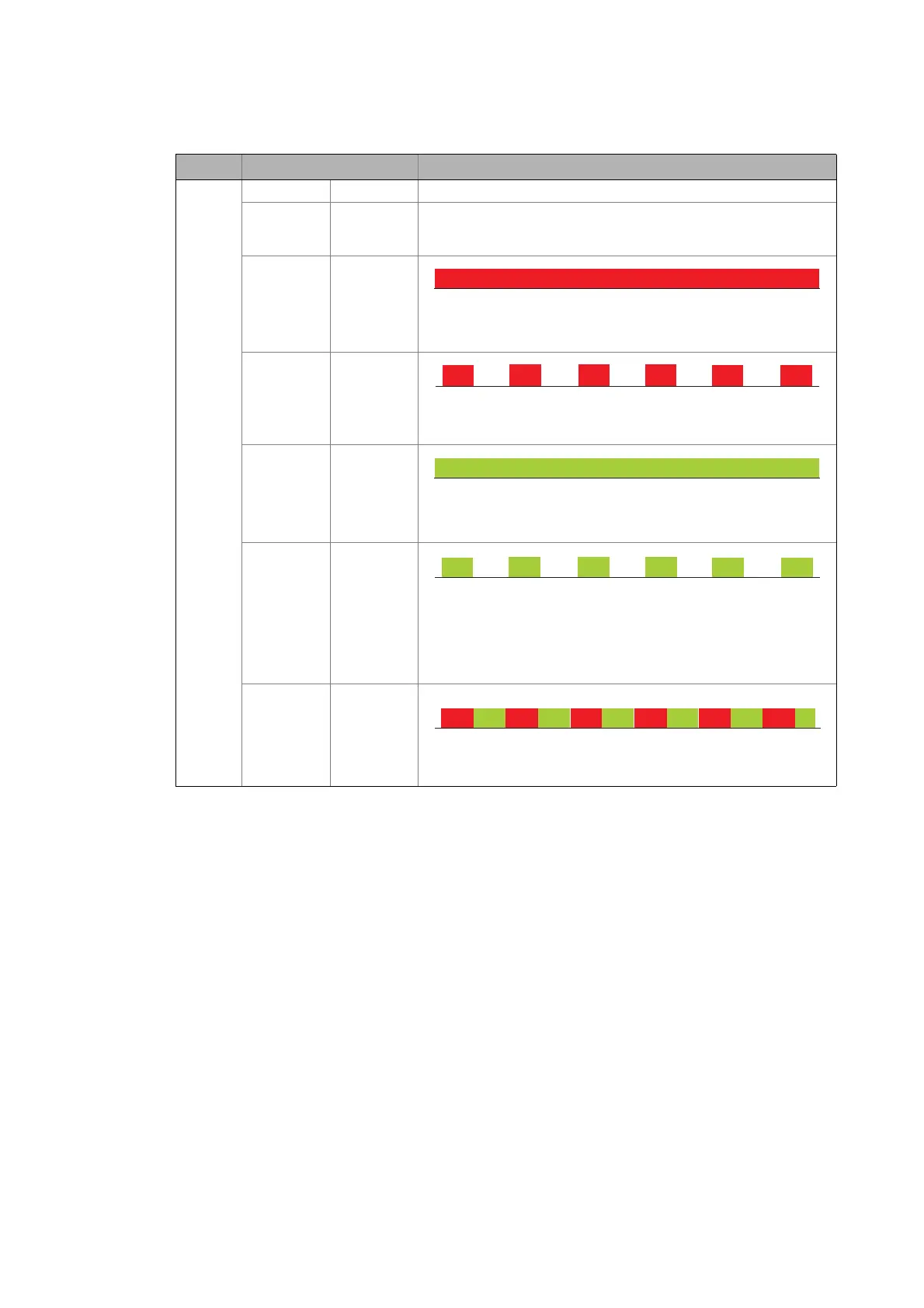

11.1 LED status displays
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
NS Green Red
Off Off CIP network status: "No IP Address"
The communication module is not being supplied with voltage or has
not been given an IP address.
Off On
CIP network status: "Duplicate IP"
The communication module is unable to gain access to the fieldbus (IP
address conflict).
Off Blinking
CIP network status: "Connection Timeout"
A time-out is executed.
On Off
CIP network status: "Connected"
The communication module is working perfectly and has established a
connection to the scanner.
Blinking Off
CIP network status: "No Connections"
The communication module ...
•is working correctly;
• has been assigned an IP address;
• has not been integrated into the network by the scanner yet.
Blinking Blinking
CIP network status: "Self-Test"
The communication module is currently undergoing a self-test.
LED Colour / status Description
