Lenze i550

Engineering Tools
14 | P a g e L e n z e i 5 5 0 A c t u a t o r S p e e d A O I
1 Setup
1.3.2 Add i550 Drive to Project and Required Settings for AOI Control
1.3.3 Install Add-On Instruction (AOI) to Project
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

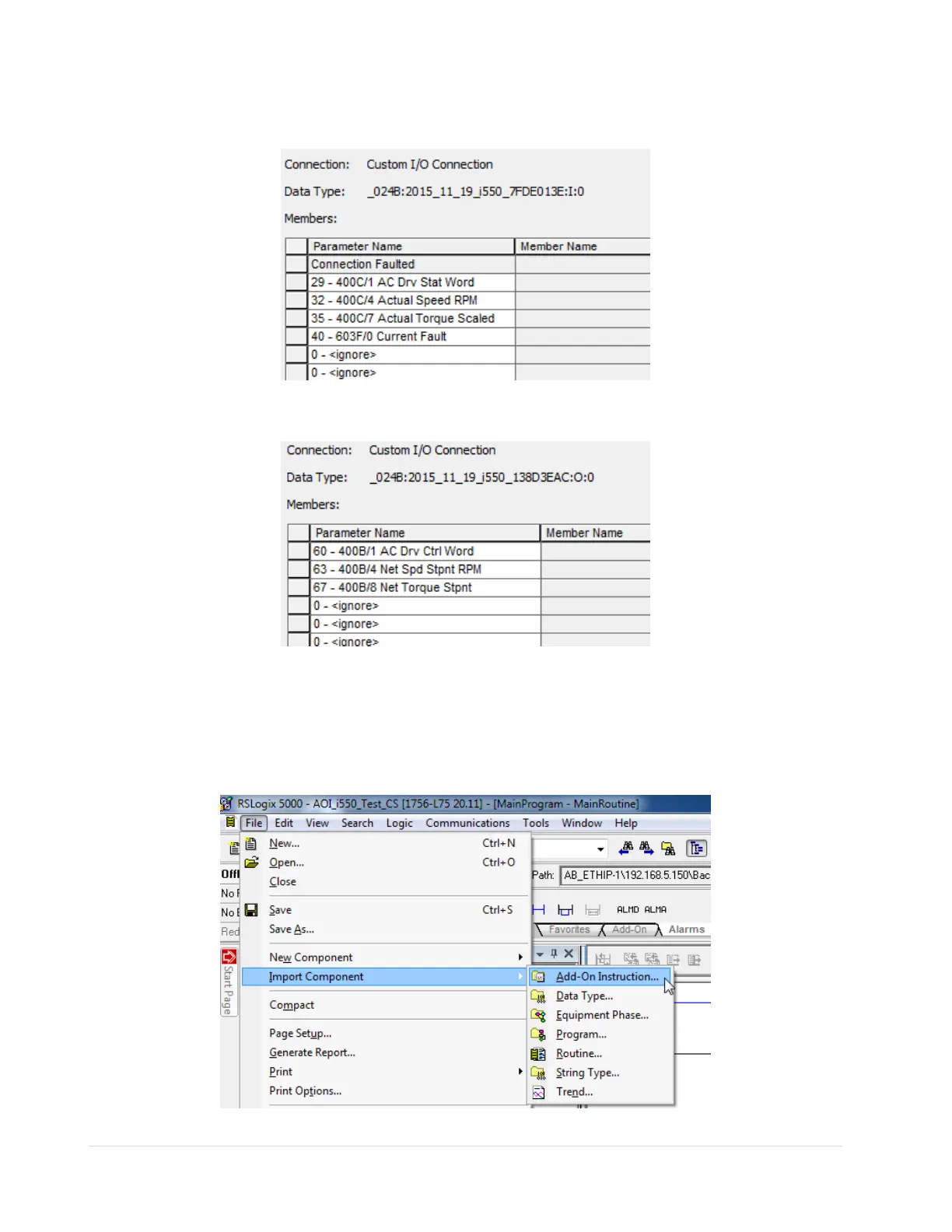

Figure 13: Input settings
Figure 14: Output settings
1.3.3 Install Add-On Instruction (AOI) to Project
1) Insert i550_ActuatorSpeed Add-On Instruction (AOI) into project from file. See Figures 15,
16. Note: It is only necessary to insert this once per project.
Figure 15: Insert Add-On Instruction
