4 Appendix
4.4.2 Configuring IP addresses
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5) Note on how to change the IP address of the drive.
a. Open Easy Starter and connect the drive (Image 42).

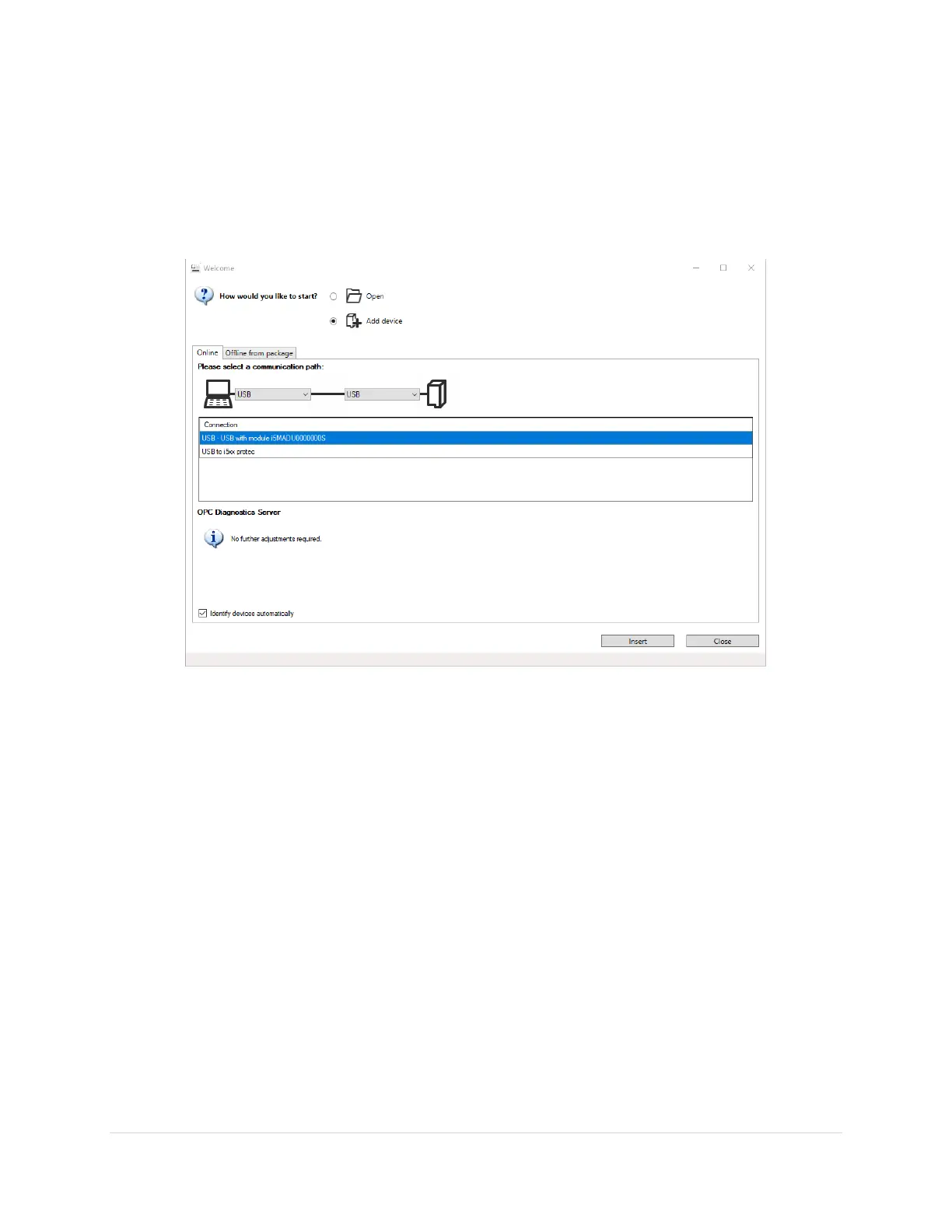

Figure 42: Connecting drive in Easy Starter
b. Once the drive is connected and opened in Easy Starter, open the
parameters tab. Then in the search bar type “IP”. Up will come all the
settings related to the IP address of the drive (Figure 43). Change the
following settings if desired/needed:
i. EtherNet/IP settings: IP address = (desired IP address)
ii. EtherNet/IP setting: IP configuration = Stored IP [0]
iii. EtherNet/IP settings: Multicast IP address = (desired IP address)
iv. WLAN settings: IP address = (desired IP address)
