Open the machine and access the power board,fol-
lowingthestepsdescribedinpt.11.2.

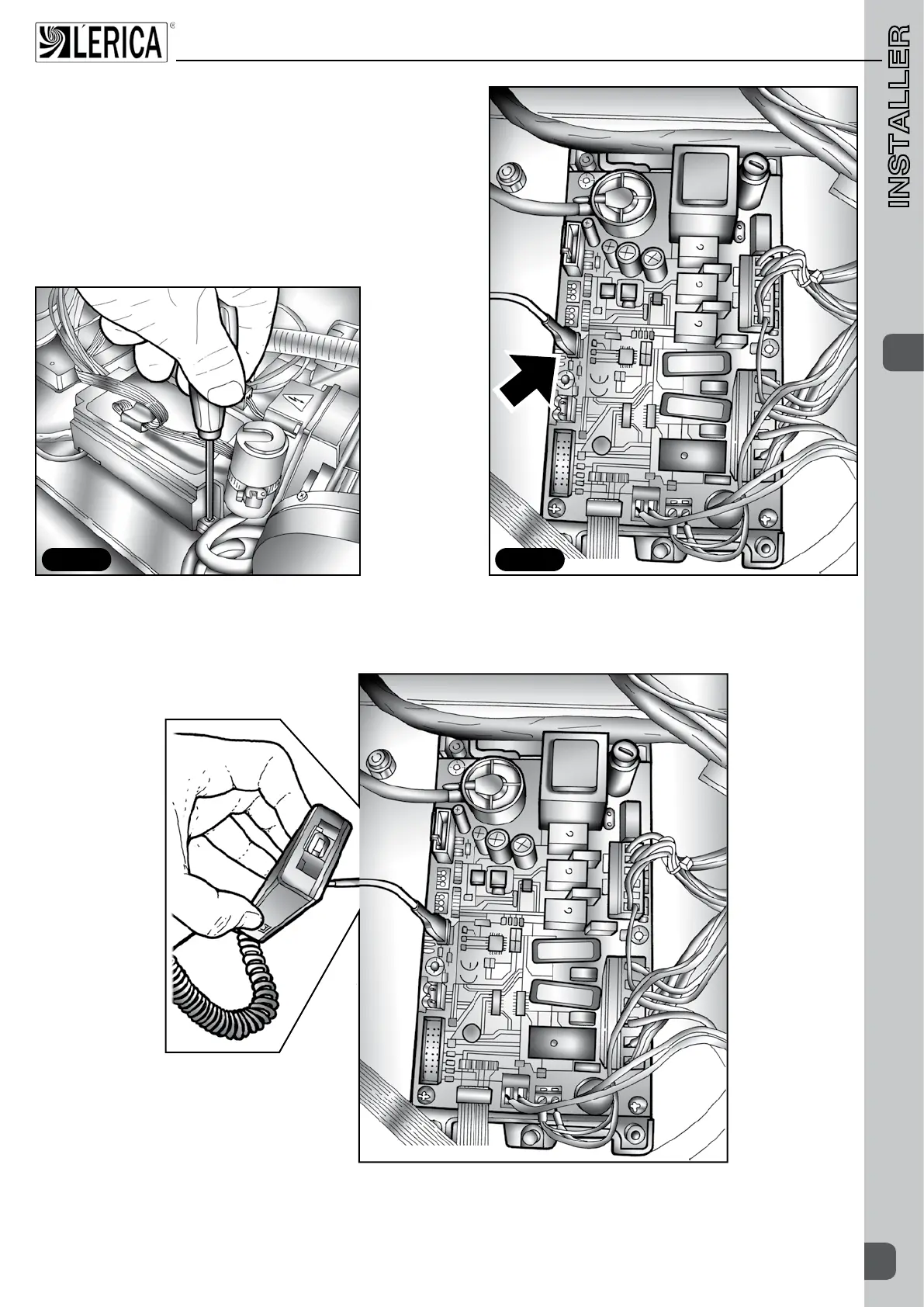

Unscrewtheprotectivelidfromthepowerboard
.
Identifytheserialportforconnectionwiththebootloader
locatedontheleftsideofthepowerboard.Connectthe
bootloader.
Turnoffthemainswitchandunplugthemachine.
Disconnecttheprogrammingcableofthebootloader.
Puttheprotectivecoverbackonthepowerboardandfastenthescrews.
Closethemachinefollowingchap.11.3.
Pluginthemachine.Turnonthemainswitchofthemachinetostartprogramming.ThegreenLEDonthe
bootloaderblinksduringdatatransfer.ThegreenLEDstopsblinkingwhenthedatahasbeentransferred,
andthecontrolpanelofthemachinestartsup.
